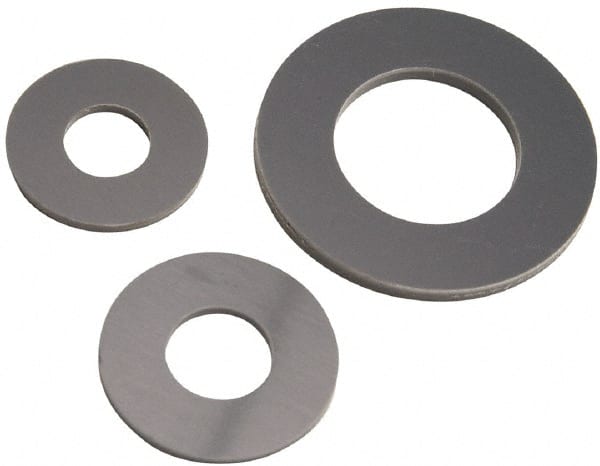

Made in USA - 5/8" Screw, Grade Gray PVC Standard Flat Washer - 0.687" ID x 1-1/2" OD, 1/8" Thick, Plain Finish
Item #: 07187917
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
PVC is a tough, corrosion-resistant thermoplastic ideal for electrical insulating applications and corrosive environments.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 5/8 |
| Inside Diameter (Decimal Inch) | 0.6870 |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Thickness (Decimal Inch) | 0.1250 |
| Material Grade | Gray |
| Material | PVC |
| Finish/Coating | Plain |
| Fastener Standard | L-P-535 Type 1 Class 1 |
| Maximum Inside Diameter (Decimal Inch) | 0.6920 |
| Minimum Outside Diameter (Decimal Inch) | 1.4900 |
| Minimum Thickness (Decimal Inch) | 0.0558 |
| Color | Gray |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
