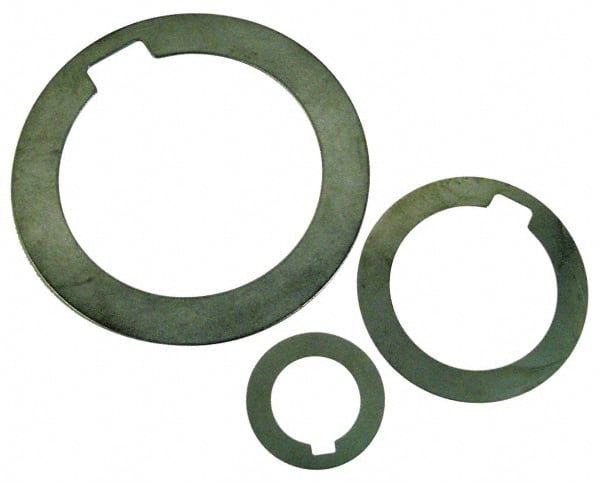

Made in USA - 0.047" Long x 1/8" Wide Notch, 0.001" Thick Internal Notched Washer - 301-304 Stainless Steel, 1/2" ID, 3/4" OD
Item #: 07187966
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (Inch) | 1/2 |
| Outside Diameter (Decimal Inch) | 0.7500 |
| Notch Width (Decimal Inch) | 0.1250 |
| Notch Length (Decimal Inch) | 0.0470 |
| Notch Type | Internal |
| Number of Notches | 1 |
| Material | Stainless Steel |
| Material Grade | 301-304 |
| Thickness (Decimal Inch) | 0.0010 |
| Finish/Coating | Uncoated |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.110 |
| Outside Diameter Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thickness Tolerance (Decimal Inch) | -0.0001 to 0.0001 |
| Notch Width Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Notch Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
