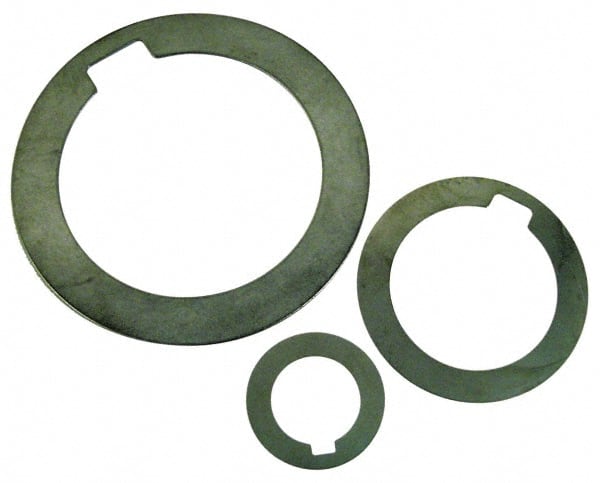

Made in USA - 0.078" Long x 3/16" Wide Notch, 0.007" Thick Internal Notched Washer - 301-304 Stainless Steel, 3/4" ID, 1-1/8" OD
Item #: 07188394
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Outside Diameter (Inch) | 1-1/8 |
| Outside Diameter (Decimal Inch) | 1.1250 |
| Notch Width (Decimal Inch) | 0.1880 |
| Notch Length (Decimal Inch) | 0.0780 |
| Notch Type | Internal |
| Number of Notches | 1 |
| Material | Stainless Steel |
| Material Grade | 301-304 |
| Thickness (Decimal Inch) | 0.0070 |
| Finish/Coating | Uncoated |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.110 |
| Outside Diameter Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thickness Tolerance (Decimal Inch) | -0.0007 to 0.0007 |
| Notch Width Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Notch Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
