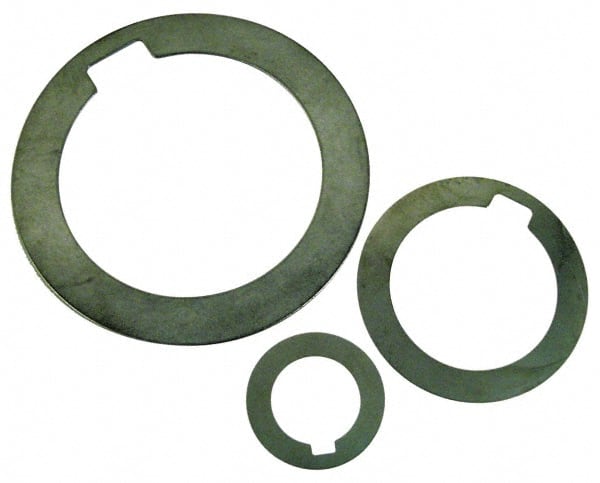

Made in USA - 3/32" Long x 1/4" Wide Notch, 0.025" Thick Internal Notched Washer - 301-304 Stainless Steel, 1" ID, 1-1/2" OD
Item #: 07188576
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Outside Diameter (Inch) | 1-1/2 |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Notch Width (Decimal Inch) | 0.2500 |
| Notch Length (Decimal Inch) | 0.0940 |
| Notch Type | Internal |
| Number of Notches | 1 |
| Material | Stainless Steel |
| Material Grade | 301-304 |
| Thickness (Decimal Inch) | 0.0250 |
| Finish/Coating | Uncoated |
| Inside Diameter Tolerance (Decimal Inch) | 0.000 to 0.110 |
| Outside Diameter Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thickness Tolerance (Decimal Inch) | -0.0025 to 0.0025 |
| Notch Width Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Notch Length Tolerance (Decimal Inch) | -0.005 to 0.005 |
