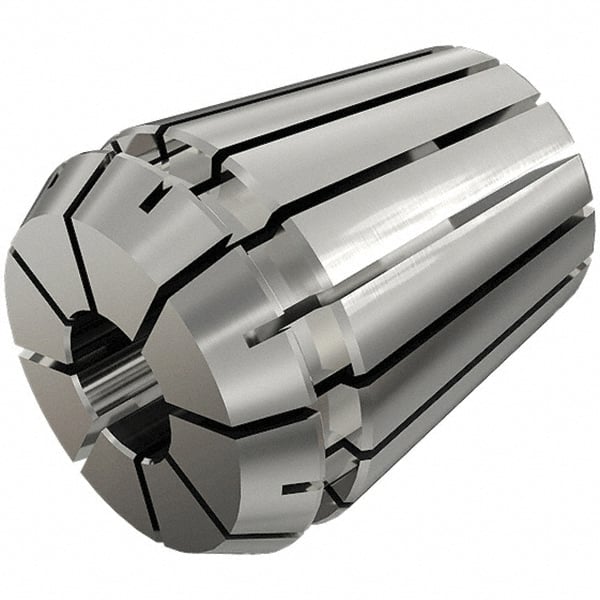

Iscar - 20 to 22mm ER50 Collet - 0.0102mm TIR
Item #: 07208556
Brand: Iscar
Model #: 4500255
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER50 |
| Size Range (mm) | 20.00-22.00 |
| TIR (mm) | 0.0102 |
| TIR (Decimal Inch) | 0.000400 |
| Minimum Collet Capacity (mm) | 19.99 |
| Minimum Collet Capacity (Decimal Inch) | 0.7870 |
| Maximum Collet Capacity (mm) | 22.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.8660 |
| PSC Code | 5136 |
