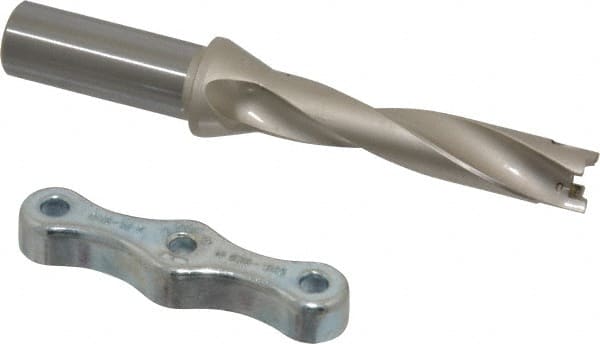

Iscar - 0.63 to 0.665" Diam, 5xD, 3.15" Max Depth, 3/4" Shank Diam, Replaceable Tip Drill - IDI Insert, 16 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 07215676
Brand: Iscar
Model #: 3200486
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (Decimal Inch) | 0.6650 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | IDI |
| Insert Seat Size | 16 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 4.0100 |
| Shank Length (Decimal Inch) | 1.9700 |
