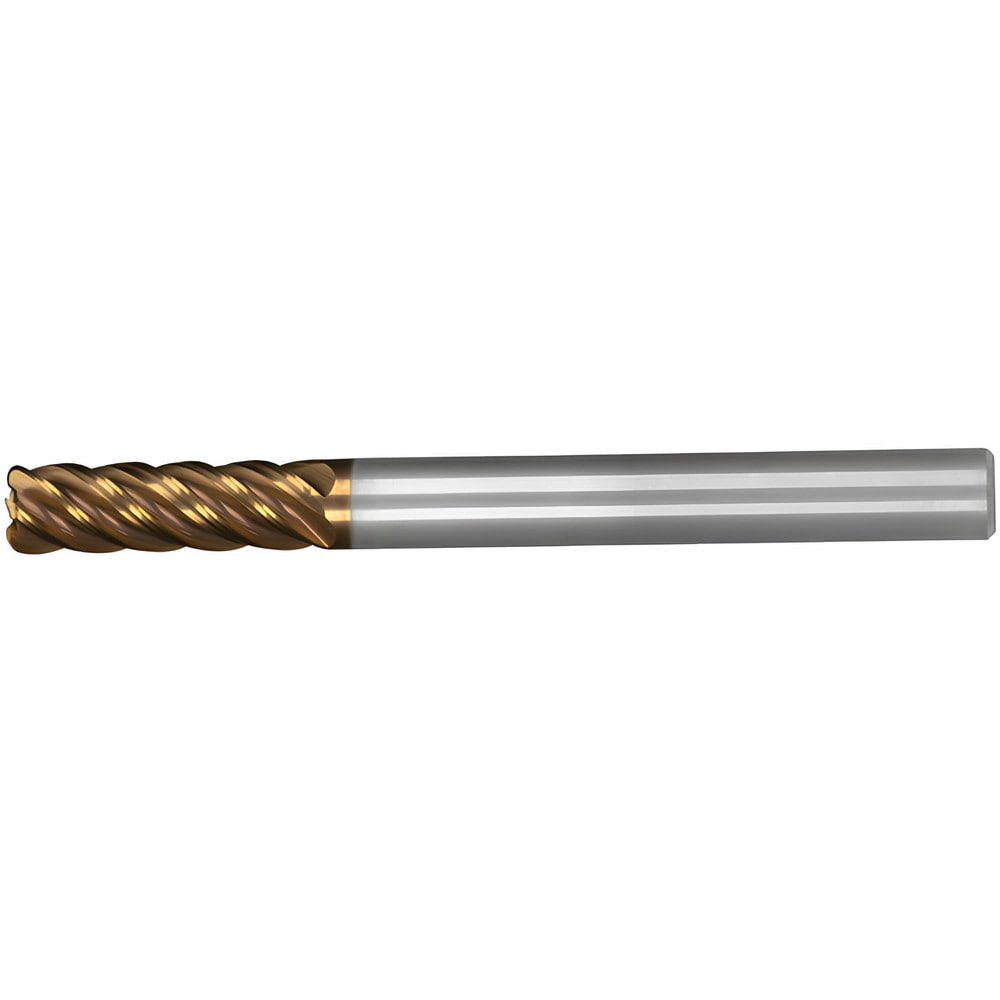

Corner Radius End Mill: 3/4" Dia, 2-1/4" LOC, 0.0600" Radius, 5 Flute, Solid Carbide
Item #: 67267500
Brand: Kennametal
Model #: 7077823
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 5 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 5.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 2.7370 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | HA2L |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores |
| Helix Style | High |
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 5 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 5.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 2.7370 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | Submicron |
| Series | HA2L |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Coating Classification | PVD |
| For Use With. | HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores |
| Helix Style | High |
| MSC Part # | 67267500 |
| Mfr Part # | 7077823 |
| Country of Origin Country of Origin is subject to change | Israel |
