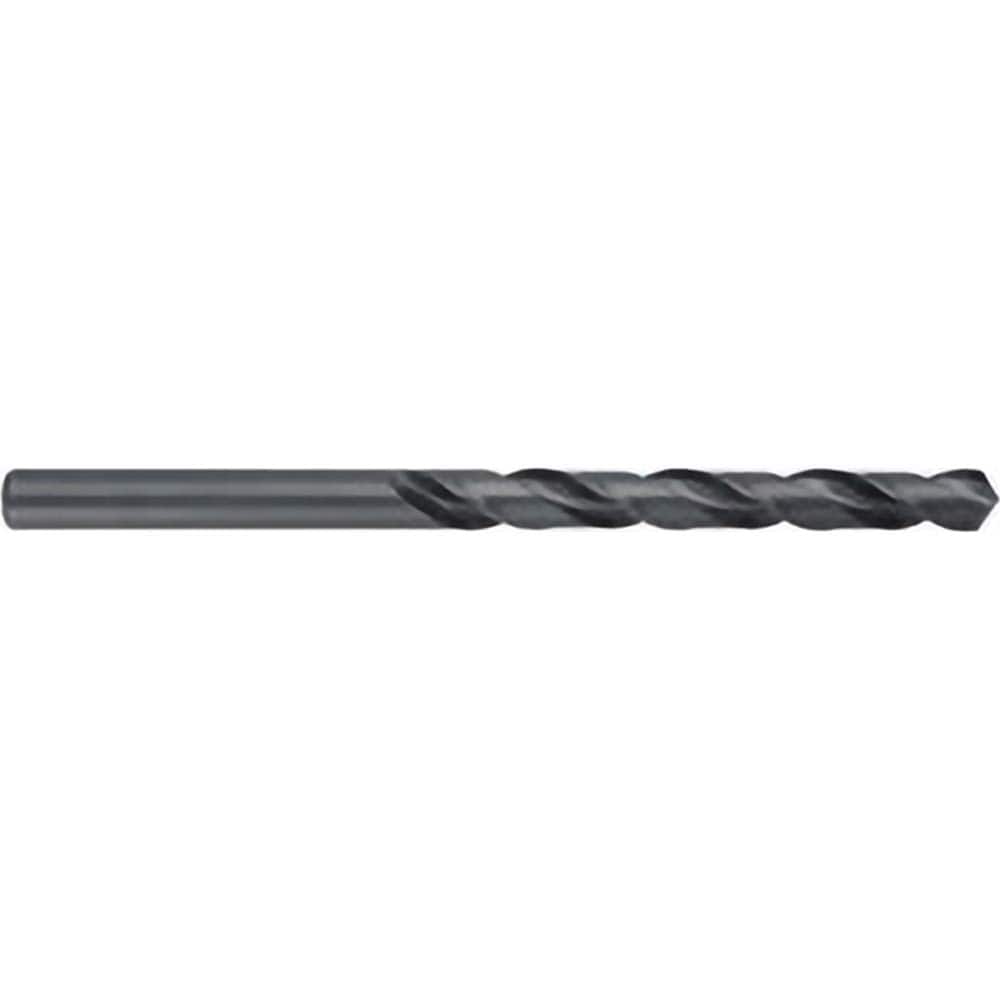

Titan USA - Taper Length Drill Bits; Drill Bit Size (Letter): E ; Drill Bit Size (Inch): 1/4 ; Drill Bit Size (Decimal Inch): 0.2500 ; Drill Point Angle: 118 ; Drill Bit Material: High Speed Steel ; Drill Bit Finish/Coating: Black Oxide
Item #: 07225691
Brand: Titan USA
Model #: CD52516
Product Specifications
Taper Length Drill Bits; Drill Bit Size (Letter): E ; Drill Bit Size (Inch): 1/4 ; Drill Bit Size (Decimal Inch): 0.2500 ; Drill Point Angle: 118 ; Drill Bit Material: High Speed Steel ; Drill Bit Finish/Coating: Black Oxide
| Drill Bit Size (Letter) | E |
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Black Oxide |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Flute Length (Inch) | 3-3/4 |
| Flute Length (Decimal Inch) | 3.7500 |
| Overall Length (Inch) | 6-1/8 |
| Shank Diameter (Inch) | 1/4 |
| Series/List | 525 |
