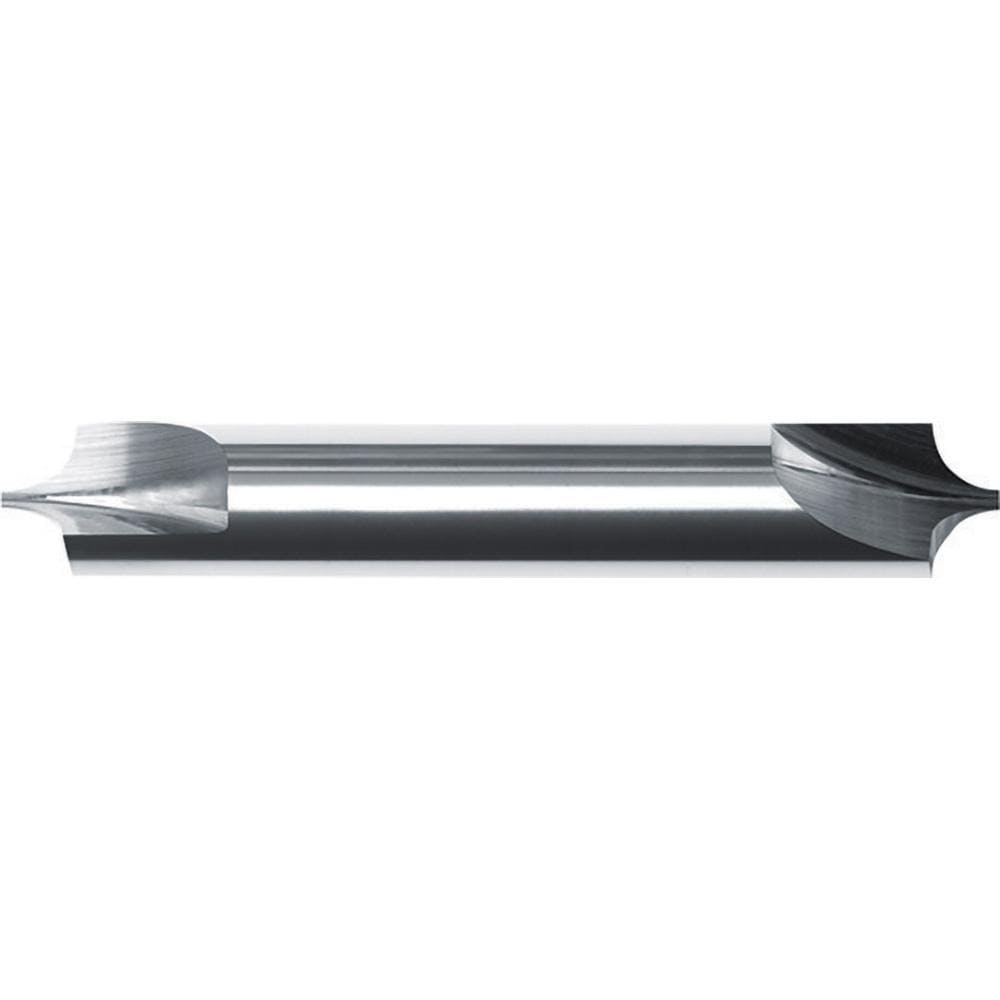

Corner Rounding End Mill: 0.2362" Radius, 5/8" Dia, 2 Flutes, Solid Carbide
Item #: 81141517
Brand: Internal Tool
Model #: 68-1700-C
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Radius (Decimal Inch) | 0.2362 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Tip Diameter (Decimal Inch) | 0.1050 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 68 |
| Helix Angle | 0.00 |
| Coolant Through | No |
| Single Or Double End | Double End |
| Coating/Finish | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
