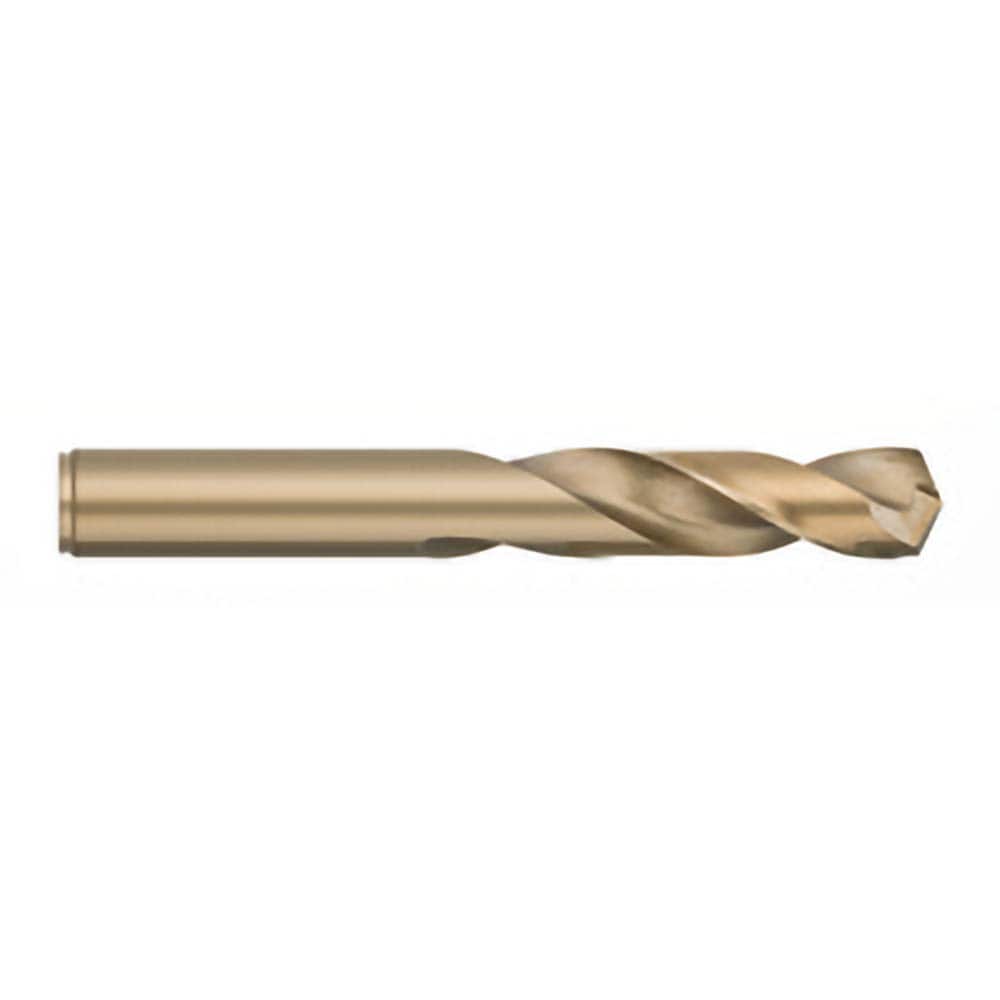

Titan USA - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.4063 ; Drill Bit Size (Inch): 13/32 ; Drill Point Angle: 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Uncoated ; Flute Type: Spiral
Item #: 07228299
Brand: Titan USA
Model #: CD32526
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.4063 ; Drill Bit Size (Inch): 13/32 ; Drill Point Angle: 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Uncoated ; Flute Type: Spiral
| Drill Bit Size (Decimal Inch) | 0.4063 |
| Drill Bit Size (Inch) | 13/32 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1-15/16 |
| Flute Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 3-5/16 |
| Point Type | Split Point |
| Specification Designation | NAS |
| Number of Flutes | 2 |
| Specification Number | NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Series/List | 325 |
