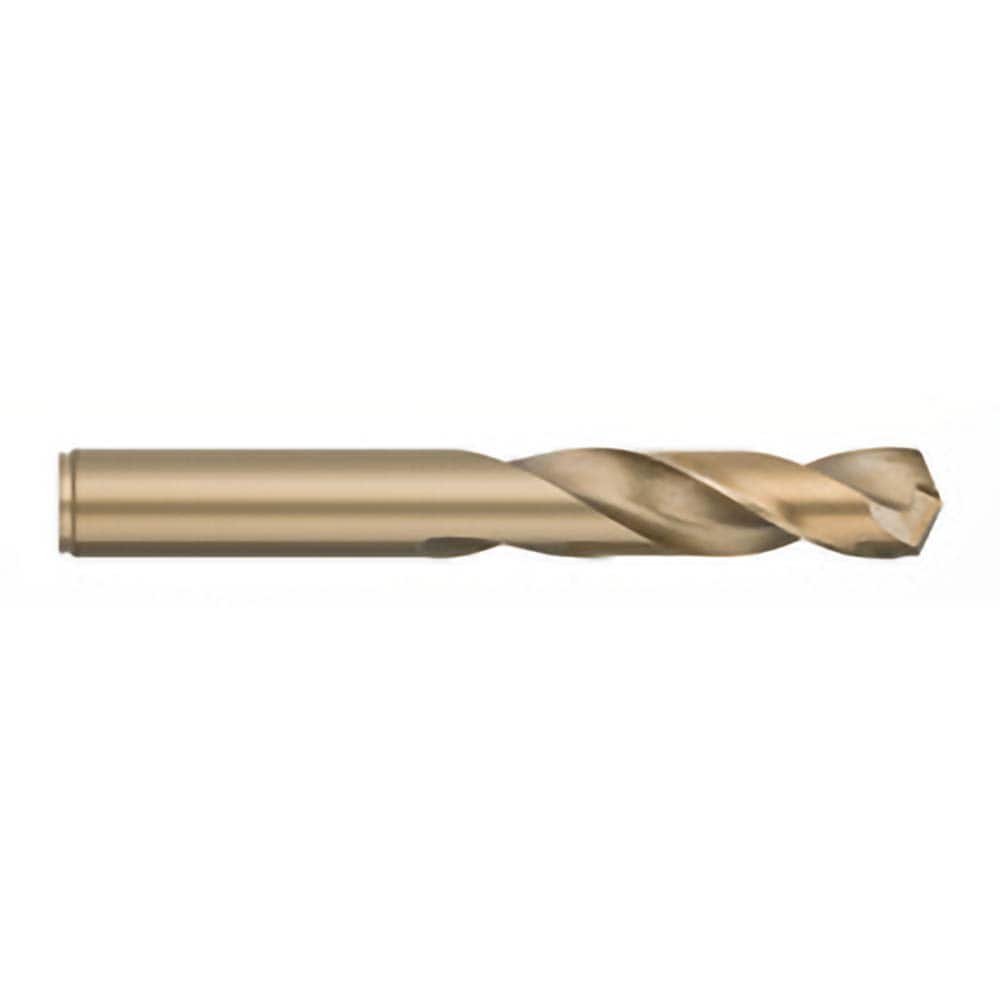

Titan USA - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.3594 ; Drill Bit Size (Inch): 23/64 ; Drill Point Angle: 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Uncoated ; Flute Type: Spiral
Item #: 07228323
Brand: Titan USA
Model #: CD32523
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.3594 ; Drill Bit Size (Inch): 23/64 ; Drill Point Angle: 135 ; Drill Bit Material: Cobalt ; Drill Bit Finish/Coating: Uncoated ; Flute Type: Spiral
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Size (Inch) | 23/64 |
| Drill Point Angle | 135 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | Uncoated |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 1-3/4 |
| Flute Length (Decimal Inch) | 1.7500 |
| Overall Length (Inch) | 3-1/16 |
| Point Type | Split Point |
| Specification Designation | NAS |
| Number of Flutes | 2 |
| Specification Number | NAS 907 Type J |
| Drill Bit Grade | Heavy Duty |
| Series/List | 325 |
