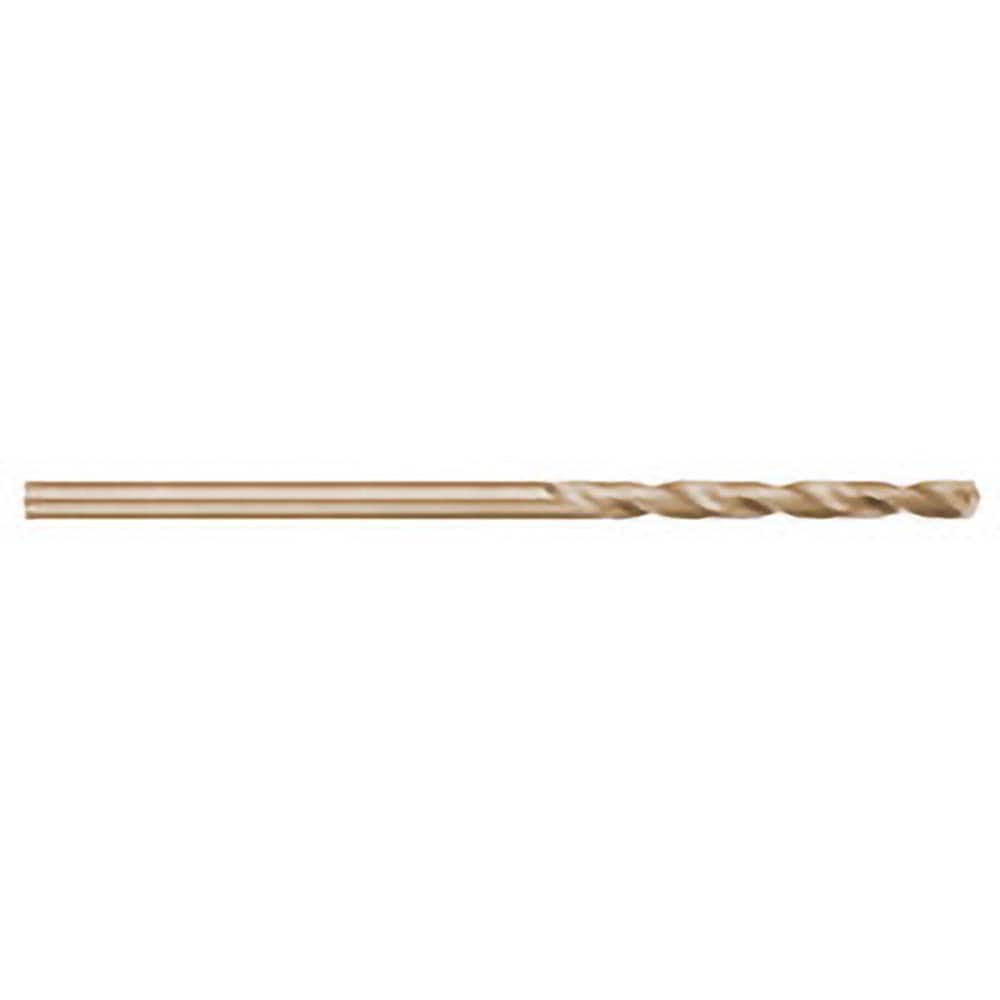

13/64″ Diam 2-7/16″ Flute Length 135° Cobalt Aircraft Extension Drill Straw Finish, Straight-Cylindrical Shank, Split Point, Self-Centering, Series 677
Item #: 07236342
Brand: Titan USA
Model #: CD67713
Product Specifications
| Drill Bit Size (Inch) | 13/64 |
| Overall Length (Inch) | 6 |
| Tool Material | Cobalt |
| Coating/Finish | Straw |
| Series | 677 |
| Drill Point Angle (Degrees) | 135 |
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Shank Type | Straight-Cylindrical |
| Flute Type | Spiral |
| Flute Length (Inch) | 2-7/16 |
| Flute Length (Decimal Inch) | 2.4375 |
| Cutting Direction | Right Hand |
| Self-Centering | Yes |
| Point Type | Split |
| Shank Diameter (Inch) | 13/64 |
| Shank Diameter (Decimal Inch) | 0.2031 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | NAS 907 Type J |
