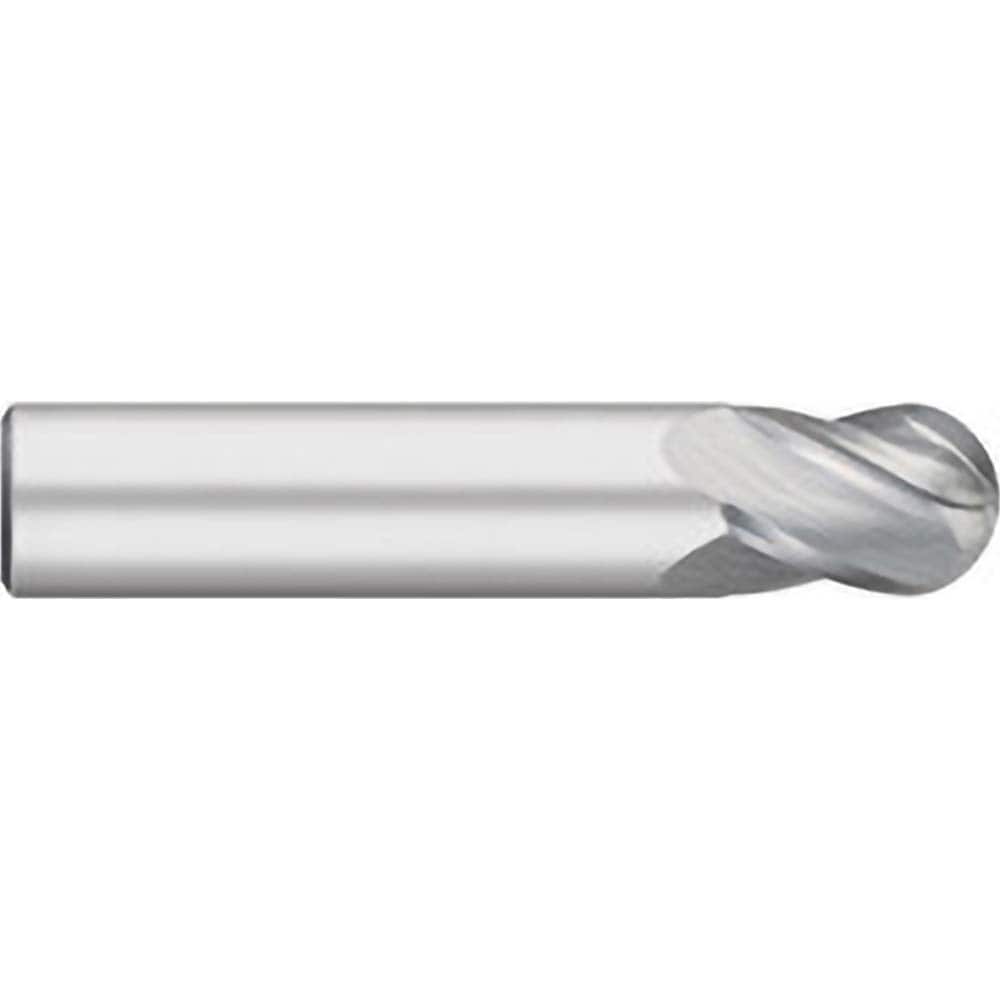

Ball End Mill: 0.1875″ Dia, 0.375″ LOC, 4 Flute, Solid Carbide 2″ OAL, 3/16″ Shank Dia, 30 ° Helix, Uncoated, Single End
Item #: 07254915
Brand: Titan USA
Model #: TC10712
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 3/8 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Upcut |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
