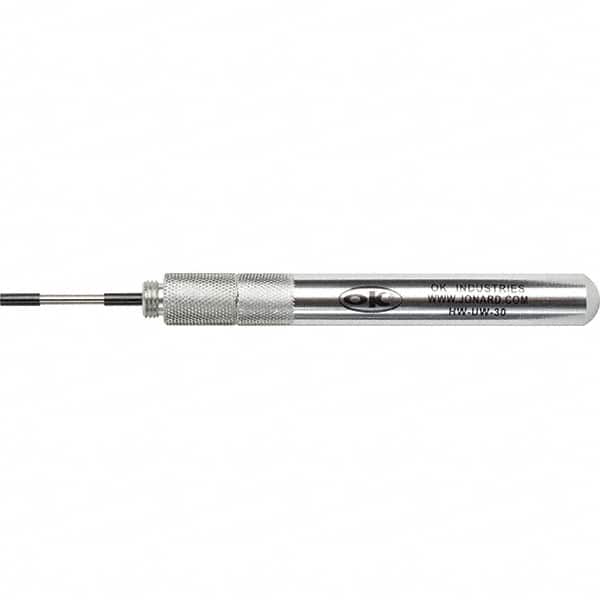

OK Industries - 32 Unwrapping, 24 Unwrapping and 30 Wrapping AWG, Aluminum, Hand Turning Wire Wrapping and Unwrapping Tool - Noninsulated, 3/4 Inch Deep
Item #: 07411309
Brand: OK Industries
Model #: HW-UW-30
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Type | Hand-turning Wire Wrapping/Unwrapping Tool |
| Maximum Compatible Wire Size (AWG) | 24 (Unwrapping); 30 (Wrapping) |
| Minimum Compatible Wire Size (AWG) | 32 (Unwrapping) |
| Wrap Type | Modified |
| Terminal Hole Depth (Decimal Inch) | 3/4 |
| Terminal Hole Depth (mm) | 19.05 |
| Tool Insulation Type | NonInsulated |
| Tool Material | Aluminum |
| Maximum Insulation Diameter (mm) | 0.69 |
| Maximum Insulation Diameter (Decimal Inch) | 0.0270 |
| Terminal Hole Diameter (mm) | 0.91 |
| Terminal Hole Diameter (Decimal Inch) | 0.0360 |
| PSC Code | 5120 |
