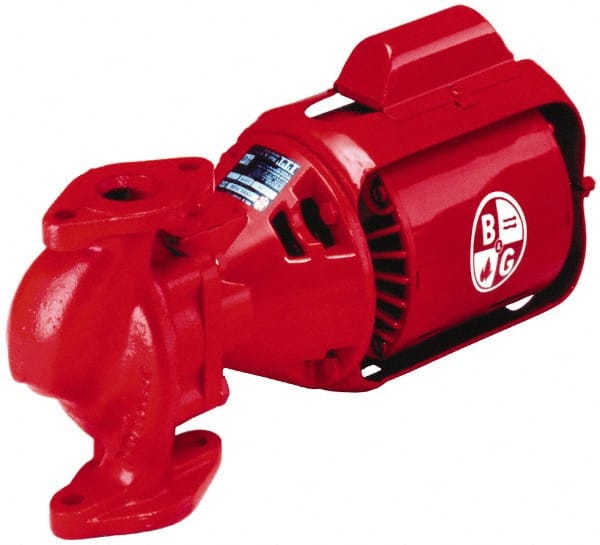

Bell & Gossett - 1/4 hp, 17-1/4" Long, 1 Phase, Cast Iron Housing, Brass Impeller, Inline Circulator Pump - 115 Volt, 60 Hz, 10" Flange Width, Bell & Gossett Part No. 102218, 125 Max psi, ODP Motor
Item #: 07499049
Brand: Bell & Gossett
Model #: 102218
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | In-Line Oil Lubricated Circulator Pump |
| Horsepower | 1/4 |
| Voltage | 115 |
| Phase | 1 |
| Housing Material | Cast Iron |
| Impeller Material | Brass |
| Flanges Included | No |
| Frequency Hz | 60 |
| Motor Type | ODP |
| RPM | 1725.000 |
| Maximum Working Pressure (psi) | 125.000 |
| Flange Width (Inch) | 10 |
| Length (Inch) | 17-1/4 |
| Bell & Gossett Part # | 102218 |
| Repair Kit | 118681 |
| Replacement Motor | 111040 |
