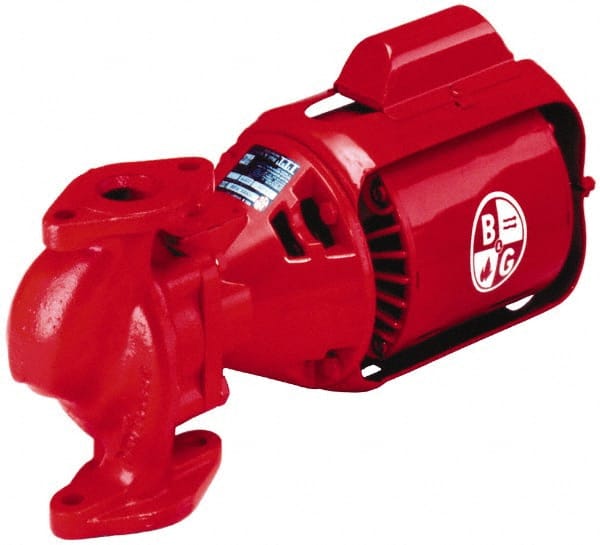

Bell & Gossett - 1/3 hp, 17-1/2" Long, 1 Phase, Cast Iron Housing, Brass Impeller, Inline Circulator Pump - 115/230 Volt, 60 Hz, 10" Flange Width, Bell & Gossett Part No. 102226, 125 Max psi, ODP Motor
Item #: 07499056
Brand: Bell & Gossett
Model #: 102226
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | In-Line Oil Lubricated Circulator Pump |
| Horsepower | 1/3 |
| Voltage | 115/230 |
| Phase | 1 |
| Housing Material | Cast Iron |
| Impeller Material | Brass |
| Flanges Included | No |
| Frequency Hz | 60 |
| Motor Type | ODP |
| RPM | 1725.000 |
| Maximum Working Pressure (psi) | 125.000 |
| Flange Width (Inch) | 10 |
| Length (Inch) | 17-1/2 |
| Bell & Gossett Part # | 102226 |
| Repair Kit | 118681 |
| Replacement Motor | 111042 |
