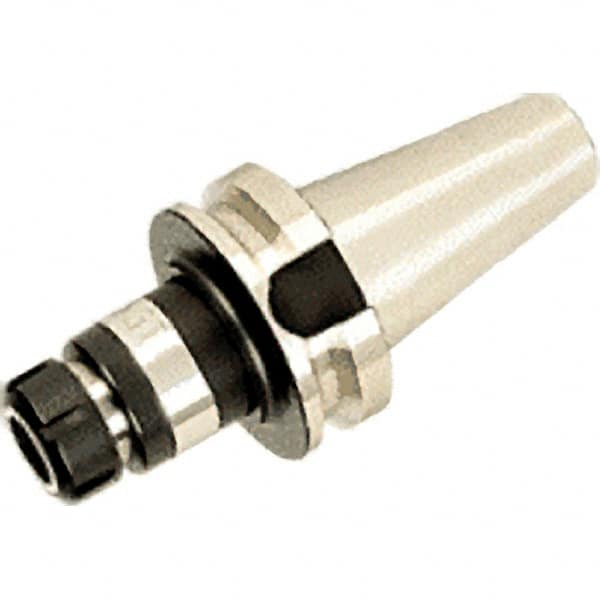

Iscar - BT40 Taper Shank Tapping Chuck/Holder - 1/4 to 3/4" Tap Capacity, 106.81mm Projection
Item #: 07547011
Brand: Iscar
Model #: 4545010
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Minimum Tap Capacity (Decimal Inch) | 0.2500 |
| Minimum Tap Capacity (Inch) | 1/4 |
| Maximum Tap Capacity (Inch) | 3/4 |
| Maximum Tap Capacity (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 4.2050 |
| Projection (mm) | 106.81 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 2.01 |
| Minimum Collet Capacity (Decimal Inch) | 0.0790 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Maximum Collet Capacity (mm) | 19.99 |
| Hole Diameter (mm) | 19.99 |
| Hole Diameter (Decimal Inch) | 0.7870 |
| Collet System | ER Tap |
| Collet Series | ER 32 |
| Nose Diameter (mm) | 50.01 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| Through Coolant | No |
