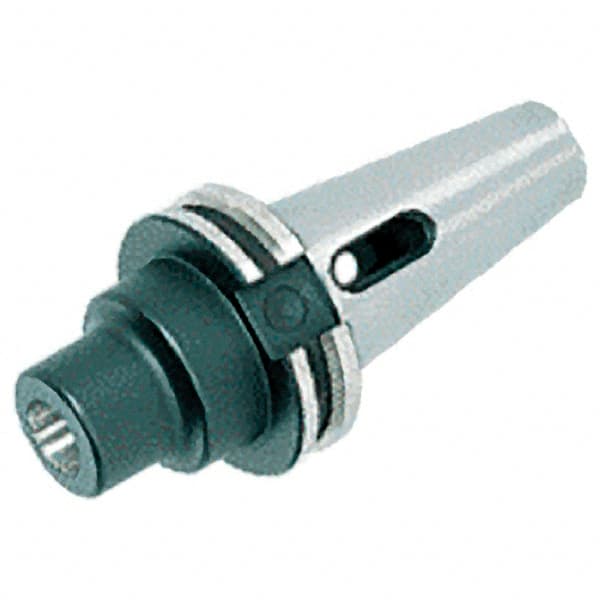

Iscar - CAT50 Outside Taper, MT4 Inside Taper, CAT to Morse Taper Adapter - 3-3/8" Projection, 1.969" Nose Diam
Item #: 07551542
Brand: Iscar
Model #: 4501545
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | CAT to Morse |
| Outside Taper Size | CAT50 |
| Inside Taper Size | MT4 |
| Projection (Decimal Inch) | 3.3750 |
| Projection (Inch) | 3-3/8 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.9690 |
| Retention Knob Thread Size | 1-8 |
