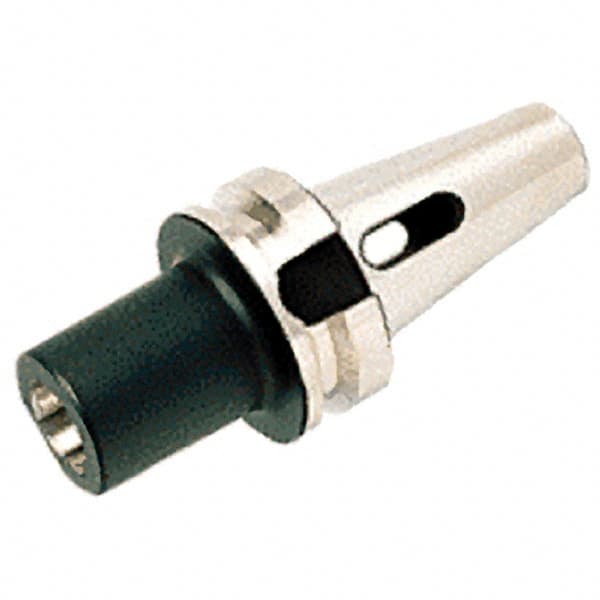

Iscar - BT40 Outside Taper, MT3 Inside Taper, BT to Morse Taper Adapter - 75mm Projection, 40mm Nose Diam, 0.000197" TIR
Item #: 07551773
Brand: Iscar
Model #: 4533003
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | BT to Morse |
| Outside Taper Size | BT40 |
| Inside Taper Size | MT3 |
| Projection (Decimal Inch) | 2.9528 |
| Projection (mm) | 75.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 1.5748 |
| Nose Diameter (mm) | 40.00 |
| TIR (Decimal Inch) | 0.0002 |
