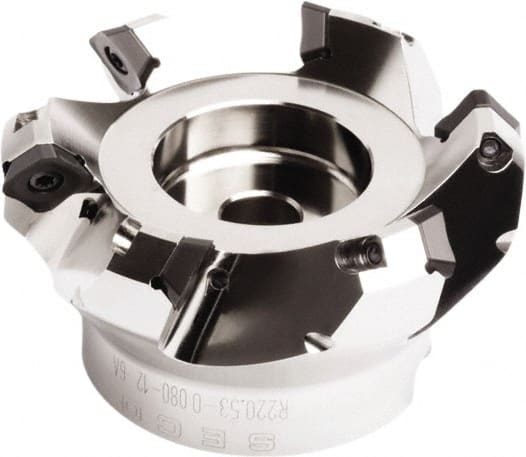

Seco - 3.78" Cut Diam, 1" Arbor Hole, 0.295" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, SE.. 1505 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series QuattroMill
Item #: 07569445
Brand: Seco
Model #: 21880
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.7800 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9700 |
| Insert Compatibility | SE.. 1505 |
| Series | QuattroMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Cutting Rake Angle | 10 |
| Rake | Positive |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum Body Diameter (Decimal Inch) | 3.1500 |
| Maximum RPM | 7400 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Complete Insert Compatibility | SEEX 1505AFN-E10; SEEX 1505AFN-M12; SEEX 1505AFTN-M17; SEEX 1505ZZTN-M17; SEMX 1505AFTN-M18; SEMX 1505AFTN-MD20; SEMX 1505AFTN-ME15 |
