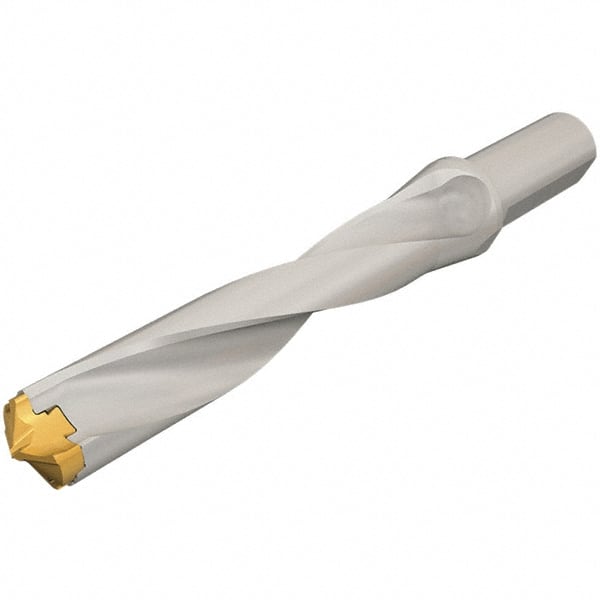

Iscar - 16 to 16.9mm Diam, 5xD, 80mm Max Depth, 20mm Shank Diam, 152mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07631054
Brand: Iscar
Model #: 3200453
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6654 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.1496 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 102.00 |
| Body Length (Decimal Inch) | 4.0157 |
| Overall Length (mm) | 152.00 |
| Overall Length (Decimal Inch) | 5.9843 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
