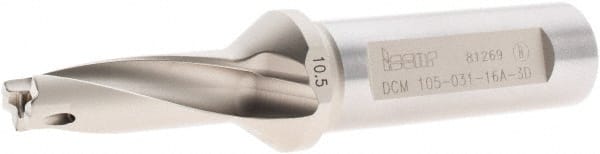

Iscar - 10.5 to 10.9mm Diam, 3xD, 31mm Max Depth, 16mm Shank Diam, 94mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07631104
Brand: Iscar
Model #: 3200539
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4291 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.2205 |
| Maximum Drill Depth (mm) | 31.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 46.00 |
| Body Length (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 94.00 |
| Overall Length (Decimal Inch) | 3.7008 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
