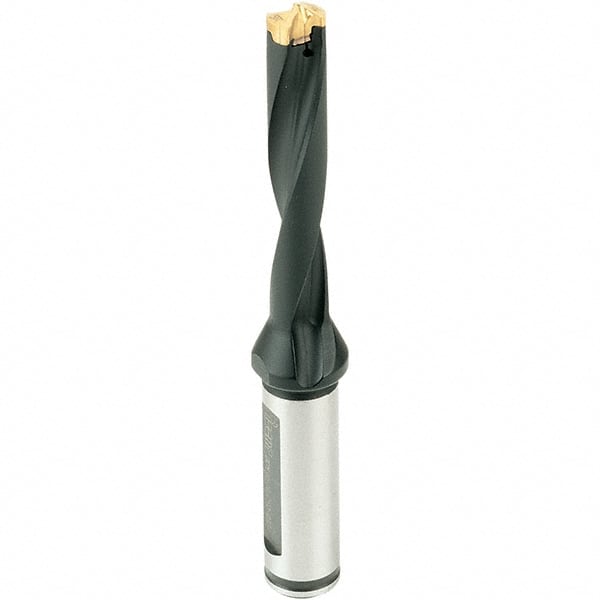

Iscar - 18 to 18.9mm Diam, 3xD, 54mm Max Depth, 25mm Shank Diam, 134.3mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07631179
Brand: Iscar
Model #: 3200583
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 18.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.7441 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Maximum Drill Depth (mm) | 54.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 78.30 |
| Body Length (Decimal Inch) | 3.0827 |
| Overall Length (mm) | 134.30 |
| Overall Length (Decimal Inch) | 5.2874 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
