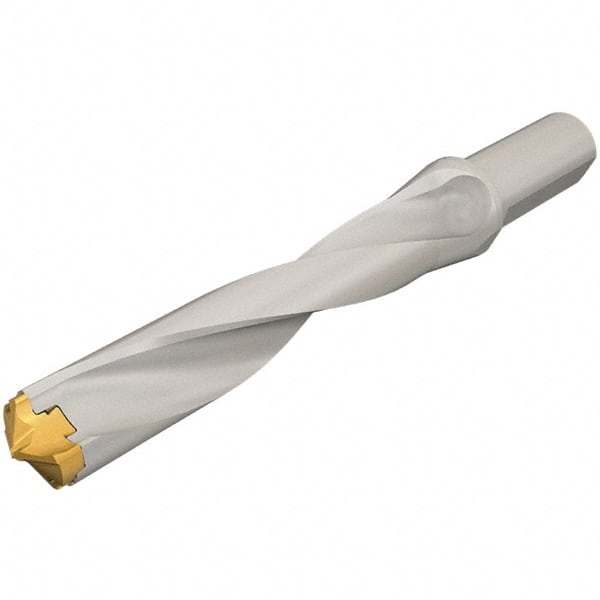

Iscar - 8 to 8.4mm Diam, 5xD, 40mm Max Depth, 12mm Shank Diam, 96mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07631237
Brand: Iscar
Model #: 3200637
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 8.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Diameter (mm) | 8.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.3307 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (mm) | 40.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 51.00 |
| Body Length (Decimal Inch) | 2.0079 |
| Overall Length (mm) | 96.00 |
| Overall Length (Decimal Inch) | 3.7795 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
