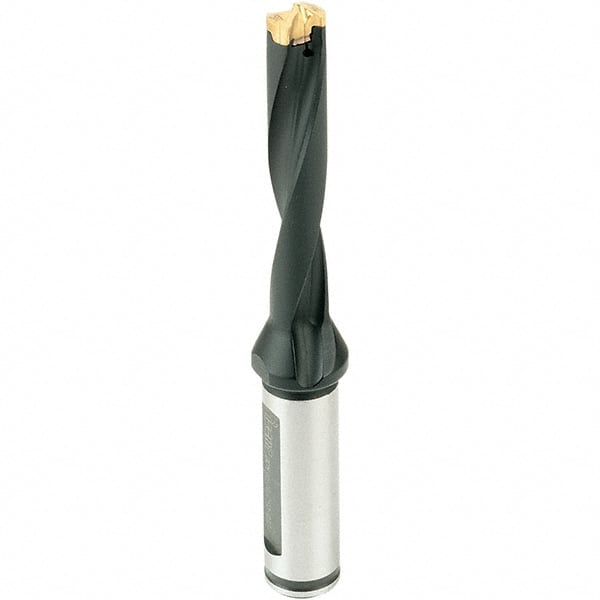

Iscar - 7.5 to 7.9mm Diam, 3xD, 22mm Max Depth, 12mm Shank Diam, 78.1mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07638414
Brand: Iscar
Model #: 3200760
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 7.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2953 |
| Maximum Drill Diameter (mm) | 7.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 0.8661 |
| Maximum Drill Depth (mm) | 22.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 33.10 |
| Body Length (Decimal Inch) | 1.3031 |
| Overall Length (mm) | 78.10 |
| Overall Length (Decimal Inch) | 3.0748 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
