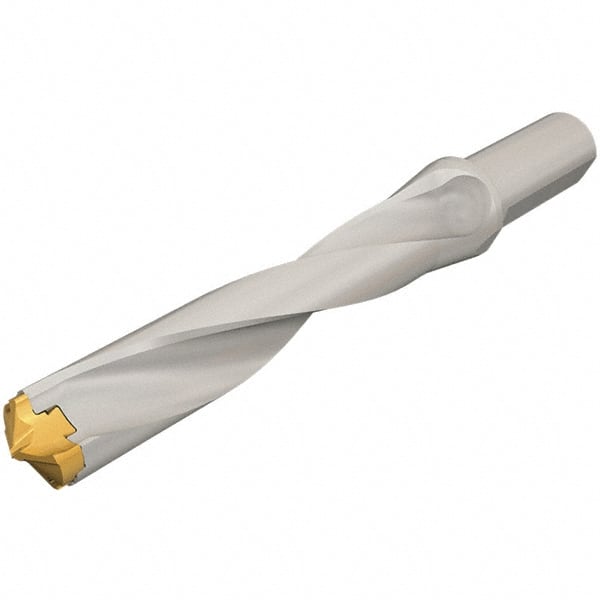

Iscar - 7.5 to 7.9mm Diam, 5xD, 37mm Max Depth, 12mm Shank Diam, 93.1mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series ChamDrill
Item #: 07638422
Brand: Iscar
Model #: 3200761
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 7.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2953 |
| Maximum Drill Diameter (mm) | 7.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 37.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 48.10 |
| Body Length (Decimal Inch) | 1.8937 |
| Overall Length (mm) | 93.10 |
| Overall Length (Decimal Inch) | 3.6654 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
