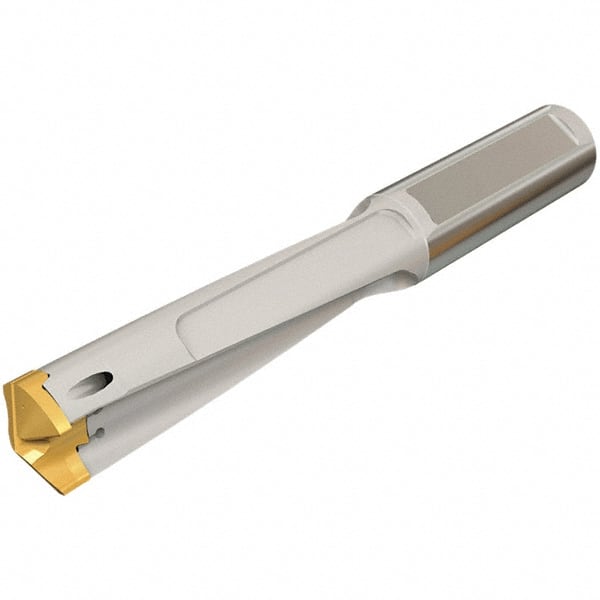

Iscar - 11.99 to 12.4mm Diam, 3.5xD, 41.91mm Max Depth, 11.99mm Shank Diam, 93.73mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, DCM Toolholder, Series UniChamDrill
Item #: 07638497
Brand: Iscar
Model #: 3200977
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 11.99 |
| Minimum Drill Diameter (Decimal Inch) | 0.4720 |
| Maximum Drill Diameter (mm) | 12.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.4880 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.6500 |
| Maximum Drill Depth (mm) | 41.91 |
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Insert Style | IDI-SG; IDI-SK |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 50.80 |
| Body Length (Decimal Inch) | 2.0000 |
| Overall Length (mm) | 93.73 |
| Overall Length (Decimal Inch) | 3.6900 |
| Shank Length (mm) | 42.93 |
| Shank Length (Decimal Inch) | 1.6900 |
