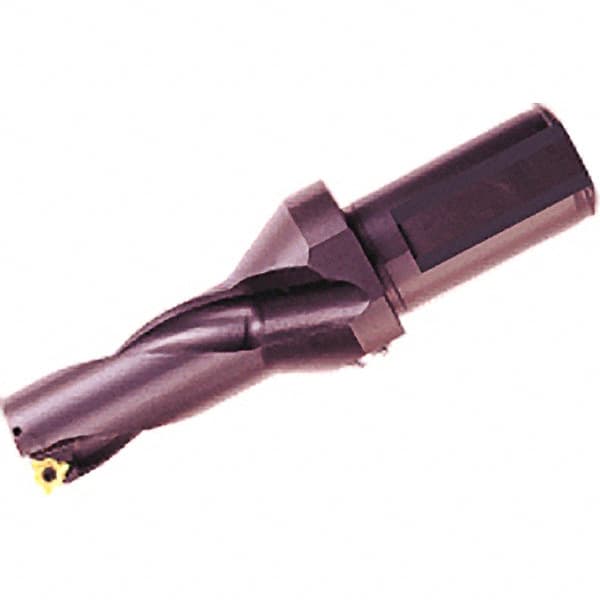

Iscar - 3.8" Max Drill Depth, 2.25xD, 1-11/16" Diam, Indexable Insert Drill - 1-1/2" Shank Diam, Whistle Notch Shank
Item #: 07640998
Brand: Iscar
Model #: 3200437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DZ |
| Drill Diameter (Inch) | 1-11/16 |
| Drill Diameter (Decimal Inch) | 1.6875 |
| Maximum Drill Depth (Decimal Inch) | 3.8000 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Overall Length/Projection (Decimal Inch) | 8.4400 |
| Insert Compatibility | WOLH-GF; WOLH-SW |
| Body Length (Decimal Inch) | 5.6900 |
| Shank Length (Decimal Inch) | 2.7500 |
| Collar Diameter (Decimal Inch) | 2.2800 |
| Series | DZDRILLS |
