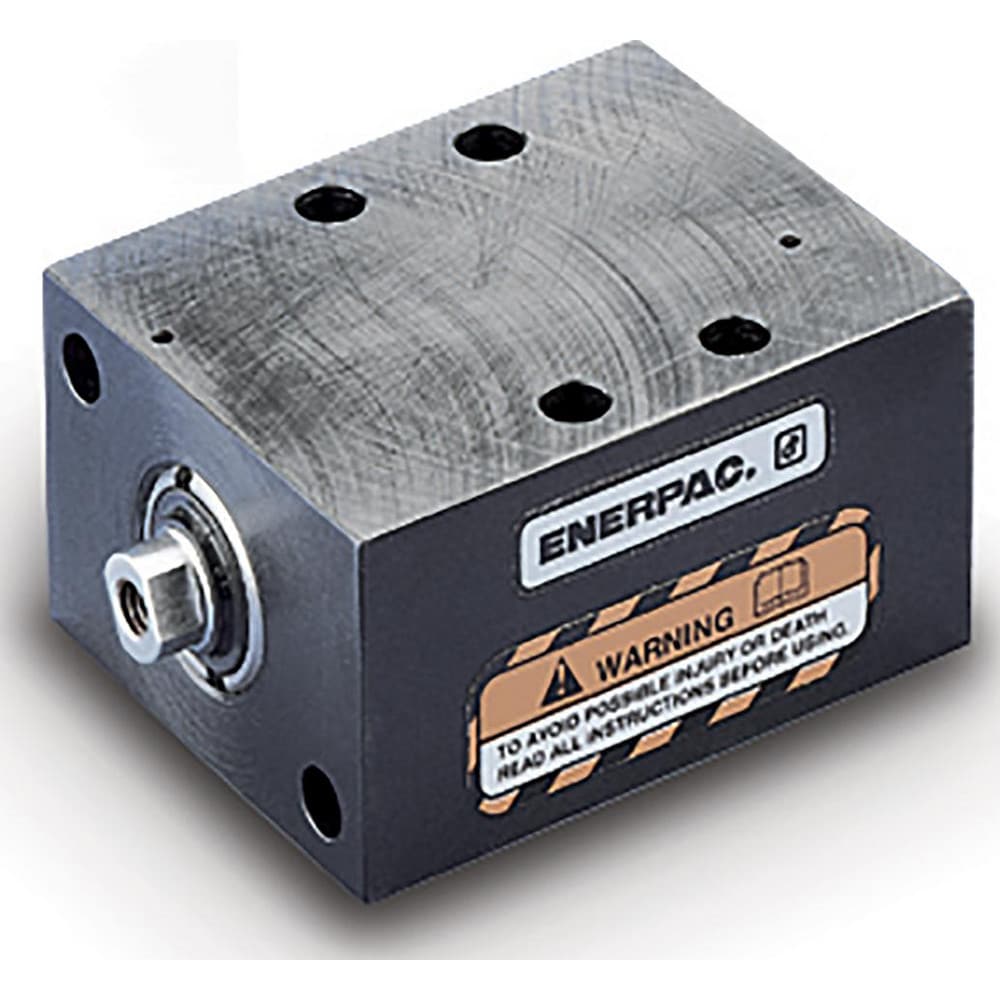

Compact Hydraulic Cylinders; Actuation: Double Acting; Rod Diameter (Decimal Inch): 0.6300; Body Material: Steel; Stroke Length (Decimal Inch): 1.9700; Maximum Working Pressure (Psi
Item #: 09782764
Brand: Enerpac
Model #: CDB18502
Product Specifications
| Actuation | Double Acting |
| Rod Diameter (Decimal Inch) | 0.6300 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 1.9700 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | 1/8 in |
| Mount Type | Vertical; Horizontal |
| Bore Size (Decimal Inch) | 0.98 |
| Retracted Length (Decimal Inch) | 3.94 |
| Extended Length (Inch) | 5.9100 |
| Load Capacity (Lb.) | 3800 |
| UNSPSC Code | 27121602 |
