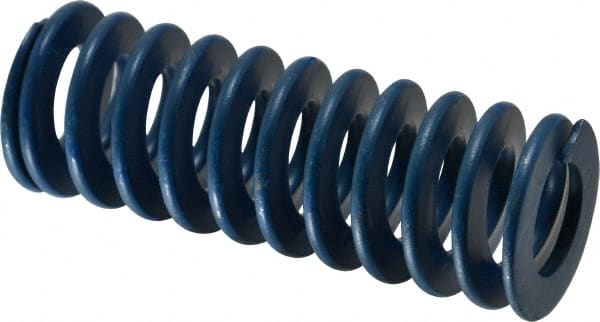

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 4" Free Length, Blue Die Spring - 540 Lb Max Deflection, 2" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 07661093
Brand: Associated Spring Raymond
Model #: 103-716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 4 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (Lb.) | 540.00 |
| Maximum Deflection (Decimal Inch) | 2.0000 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
