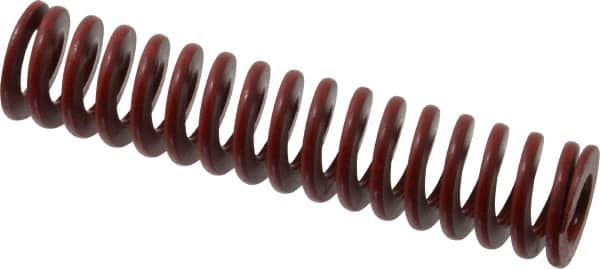

Associated Spring Raymond - 1" Hole Diam, 1/2" Rod Diam, 4-1/2" Free Length, Red Die Spring - 283.1 Lb Max Deflection, 1.67" Max Deflection, Medium Heavy Duty, Chromium Alloy Steel
Item #: 07661804
Brand: Associated Spring Raymond
Model #: 104-518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1 |
| Rod Diameter (Inch) | 1/2 |
| Free Length (Inch) | 4-1/2 |
| Load Type | Medium Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (Lb.) | 283.10 |
| Maximum Deflection (Decimal Inch) | 1.6700 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
