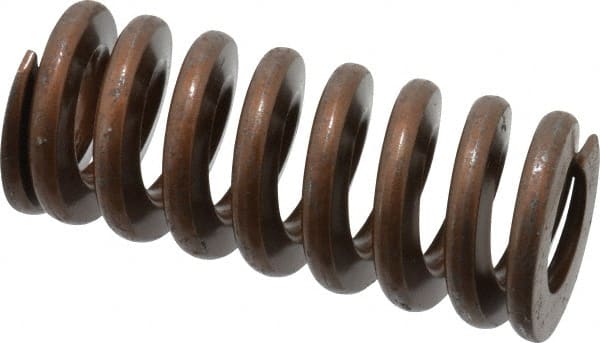

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 3-1/2" Free Length, Gold Die Spring - 1117.2 Lb Max Deflection, 1.05" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 07663024
Brand: Associated Spring Raymond
Model #: 105-714
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 3-1/2 |
| Load Type | Heavy-Duty |
| Color | Gold |
| Maximum Deflection Load (Lb.) | 1117.20 |
| Maximum Deflection (Decimal Inch) | 1.0500 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
