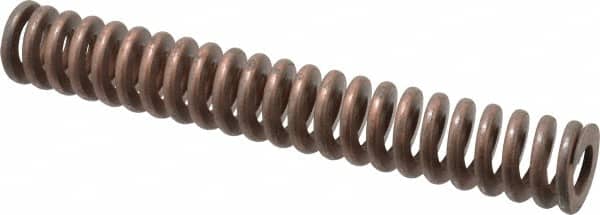

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 10" Free Length, Gold Die Spring - 1032 Lb Max Deflection, 3" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 07663107
Brand: Associated Spring Raymond
Model #: 105-740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 10 |
| Load Type | Heavy-Duty |
| Color | Gold |
| Maximum Deflection Load (Lb.) | 1032.00 |
| Maximum Deflection (Decimal Inch) | 3.0000 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
