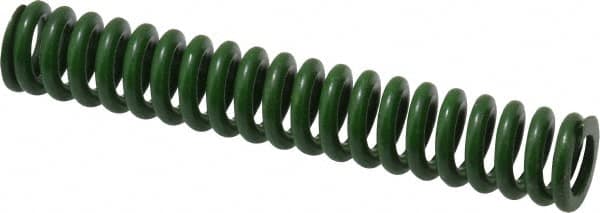

Associated Spring Raymond - 1/2" Hole Diam, 9/32" Rod Diam, 3" Free Length, Green Die Spring - 67.5 Lb Max Deflection, 0.75" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 07663388
Brand: Associated Spring Raymond
Model #: 106-212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1/2 |
| Rod Diameter (Inch) | 9/32 |
| Free Length (Inch) | 3 |
| Load Type | Extra Heavy-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 67.50 |
| Maximum Deflection (Decimal Inch) | 0.7500 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
