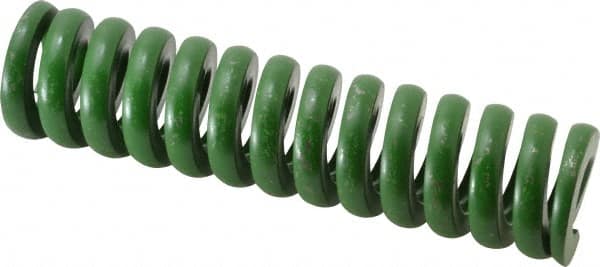

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 6" Free Length, Green Die Spring - 1656 Lb Max Deflection, 1.5" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 07663933
Brand: Associated Spring Raymond
Model #: 106-724
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 6 |
| Load Type | Extra Heavy-Duty |
| Color | Green |
| Maximum Deflection Load (Lb.) | 1656.00 |
| Maximum Deflection (Decimal Inch) | 1.5000 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
