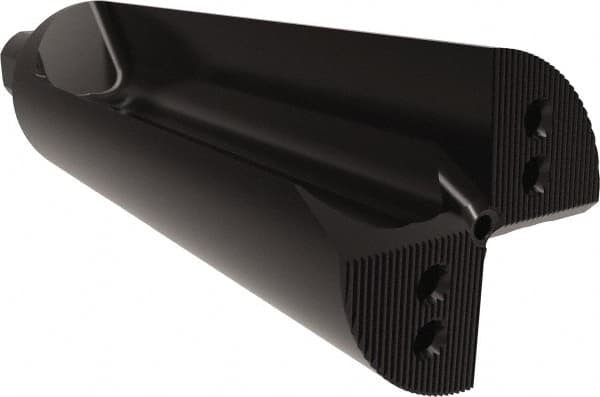

Allied Machine and Engineering - 10" Max Drill Depth, 2.5xD, 3.8" Diam, Indexable Insert Drill - 8 Inserts, 2" Shank Diam, Straight Shank
Item #: 07789787
Brand: Allied Machine and Engineering
Model #: R58X25-200L
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (Decimal Inch) | 3.8000 |
| Maximum Drill Depth (Decimal Inch) | 10.0000 |
| Maximum Drill Depth (Inch) | 10 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 8 |
| Maximum Drill Diameter (Decimal Inch) | 4.0000 |
| Overall Length/Projection (Inch) | 16-1/4 |
| Overall Length/Projection (Decimal Inch) | 16.2500 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 11.7500 |
| Shank Length (Decimal Inch) | 4.5000 |
| Series | Revolution Drill |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
