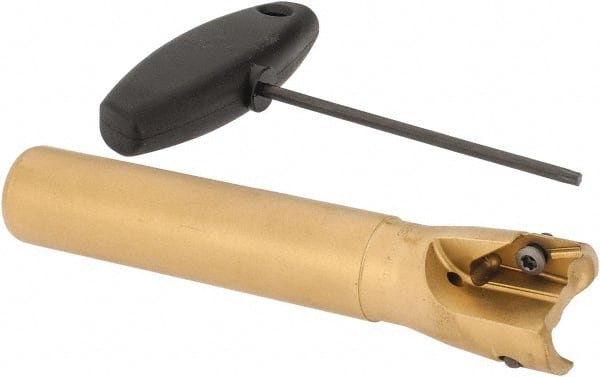

Seco - 10mm Cutting Diam, 5mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, VPGX 2206..E.-E10 Insert, R217.97 Toolholder, Through Coolant
Item #: 07947922
Brand: Seco
Model #: 54103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 2 |
| Insert Style | VPGX 2206..E.-E10 |
| Toolholder Style | R217.97 |
| Series | R217 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Head Length (Inch) | 2 |
| Head Length (Decimal Inch) | 2.0000 |
| Shank Length (Decimal Inch) | 4.0000 |
| Maximum RPM | 40000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 3.5400 |
