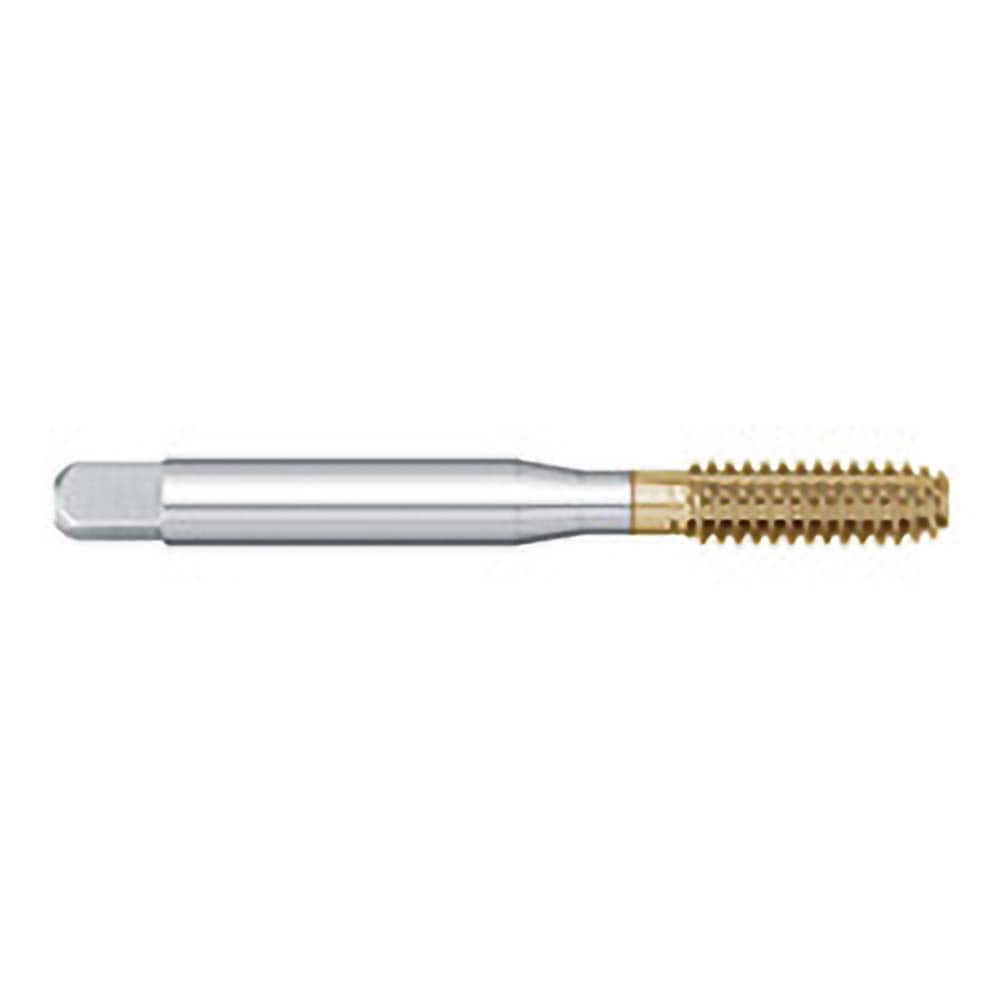

Titan USA - Thread Forming Taps; Thread Size (Inch): 7/16-20 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: Bottoming ; Finish/Coating: TiN ; Material: High Speed Steel
Item #: 07954951
Brand: Titan USA
Model #: TT92904
Product Specifications
Thread Forming Taps; Thread Size (Inch): 7/16-20 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: Bottoming ; Finish/Coating: TiN ; Material: High Speed Steel
| Thread Size (Inch) | 7/16-20 |
| Class of Fit | 2B/3B |
| Thread Limit | H5 |
| Chamfer | Bottoming |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 3.1563 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.4375 |
| Thread Length (Inch) | 1-7/16 |
| Series/List | 776 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Length (Inch) | 0.4063 |
| Through Coolant | NonThrough Coolant |
