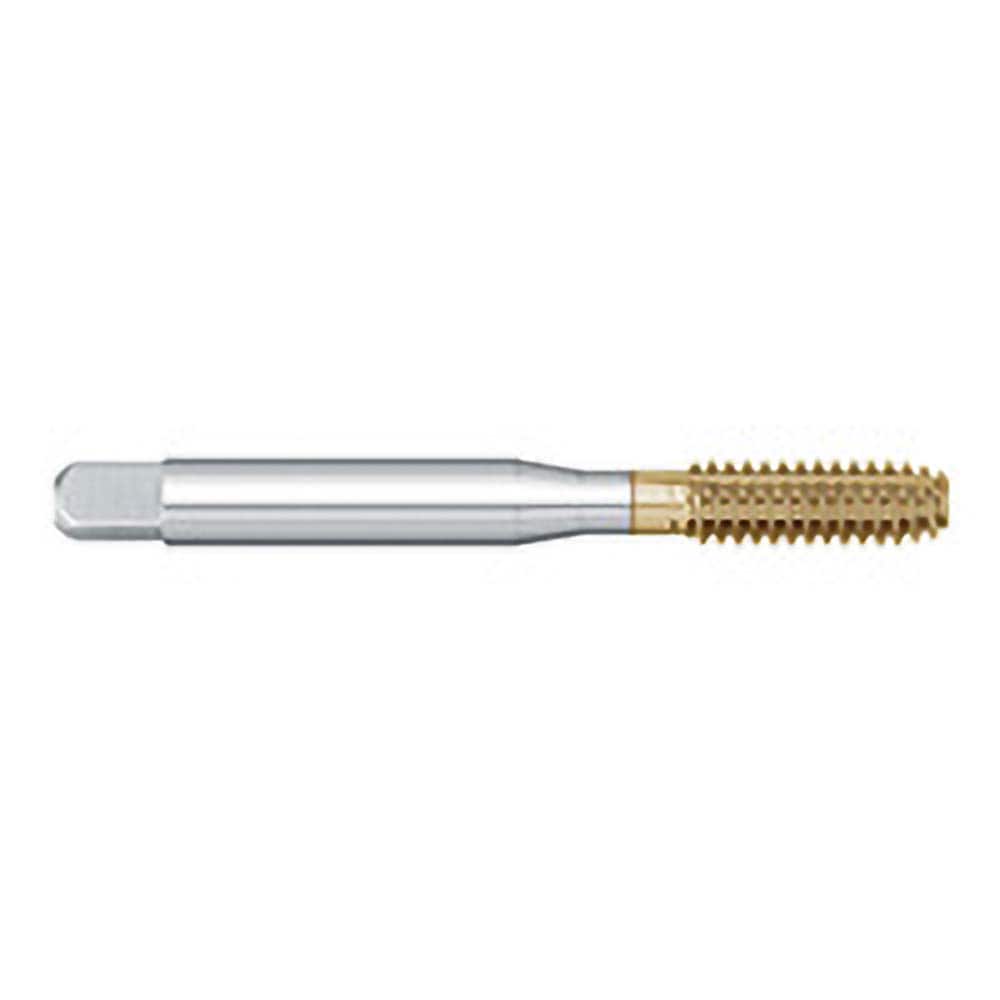

Titan USA - Thread Forming Taps; Thread Size (Inch): 3/8-24 ; Thread Limit: H7 ; Chamfer: Plug ; Finish/Coating: TiN ; Material: High Speed Steel ; Overall Length (Decimal Inch): 2.9375
Item #: 07955016
Brand: Titan USA
Model #: TT92895
Product Specifications
Thread Forming Taps; Thread Size (Inch): 3/8-24 ; Thread Limit: H7 ; Chamfer: Plug ; Finish/Coating: TiN ; Material: High Speed Steel ; Overall Length (Decimal Inch): 2.9375
| Thread Size (Inch) | 3/8-24 |
| Thread Limit | H7 |
| Chamfer | Plug |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.9375 |
| Overall Length (Inch) | 2-15/16 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Length (Inch) | 1-1/4 |
| Series/List | 776 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (Inch) | 7/16 |
| Through Coolant | NonThrough Coolant |
