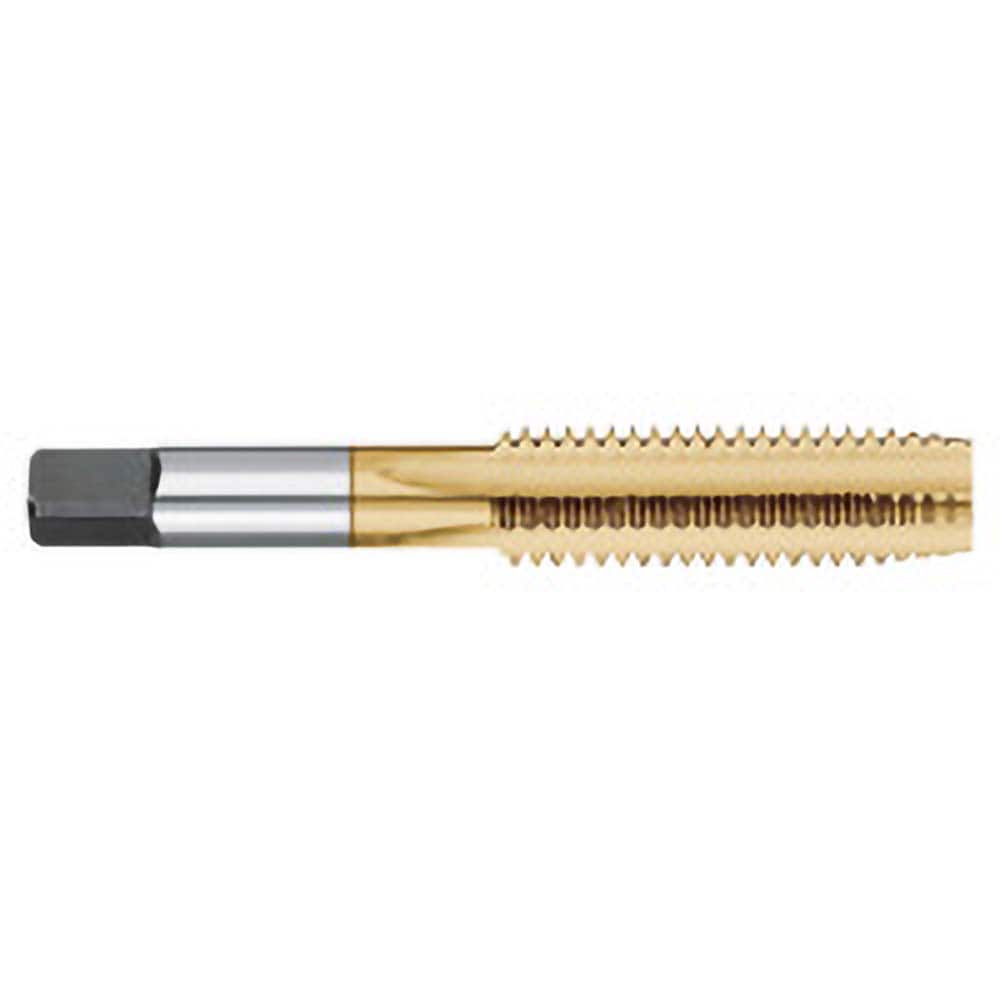

Straight Flutes Tap: 7/16-20, UNF, 4 Flutes, Plug, 2B & 3B, High Speed Steel, TiN Finish 1-7/16″ Thread Length, Right Hand, H3, Series 729
Item #: 07959927
Brand: Titan USA
Model #: TT75507
Product Specifications
| Tap Type | Standard Hand Tap |
| Material | High Speed Steel |
| Coating/Finish | TiN |
| Thread Size (Inch - 0 Decimals) | 7/16-20 |
| Overall Length (Decimal Inch) | 3.1563 |
| Chamfer | Plug |
| Thread Limit | H3 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 1.4375 |
| Thread Length (Inch) | 1-7/16 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Square Length (Decimal Inch) | 0.4063 |
| Square Size (Decimal Inch) | 0.2420 |
| Series | 729 |
| Class Of Fit | 2B; 3B |
| Number Of Flutes | 4 |
| Coolant Through | No |
