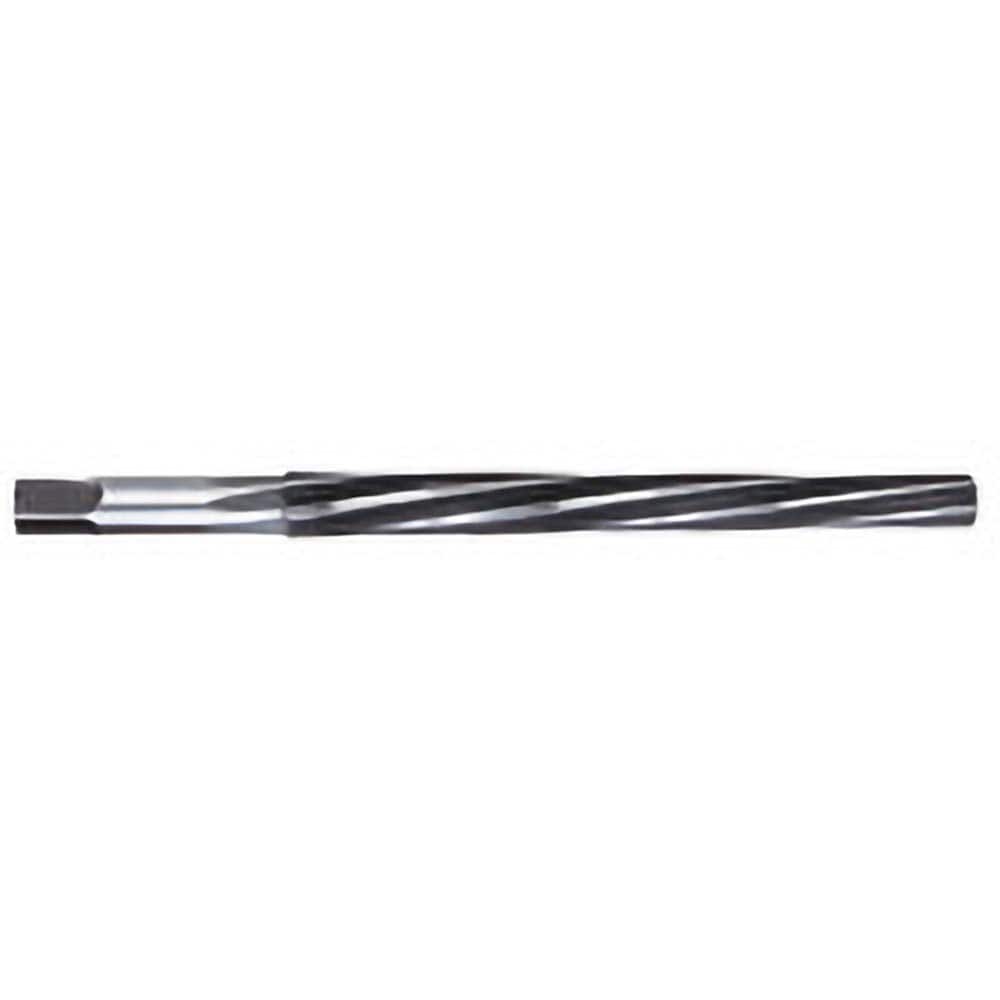

Titan USA - Taper Pin Reamers; Taper Pin Size (Number): #5 (Wire); Small End Diameter (Decimal Inch): 0.2409 ; Reamer Diameter (Decimal Inch): 0.2994 ; Flute Type: Spiral ; Shank Type: Straight ; Overall Length (Inch): 4-5/16
Item #: 07962285
Brand: Titan USA
Model #: TR97578
Product Specifications
Taper Pin Reamers; Taper Pin Size (Number): #5 (Wire); Small End Diameter (Decimal Inch): 0.2409 ; Reamer Diameter (Decimal Inch): 0.2994 ; Flute Type: Spiral ; Shank Type: Straight ; Overall Length (Inch): 4-5/16
| Taper Pin Size (Number) | #5 |
| Small End Diameter (Decimal Inch) | 0.2409 |
| Reamer Diameter (Decimal Inch) | 0.2994 |
| Flute Type | Spiral |
| Shank Type | Straight |
| Overall Length (Inch) | 4-5/16 |
| Flute Length (Inch) | 2-13/16 |
| Number of Flutes | 6 |
| Shank Diameter (Inch) | 5/16 |
| Spiral Direction | Left Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Uncoated |
