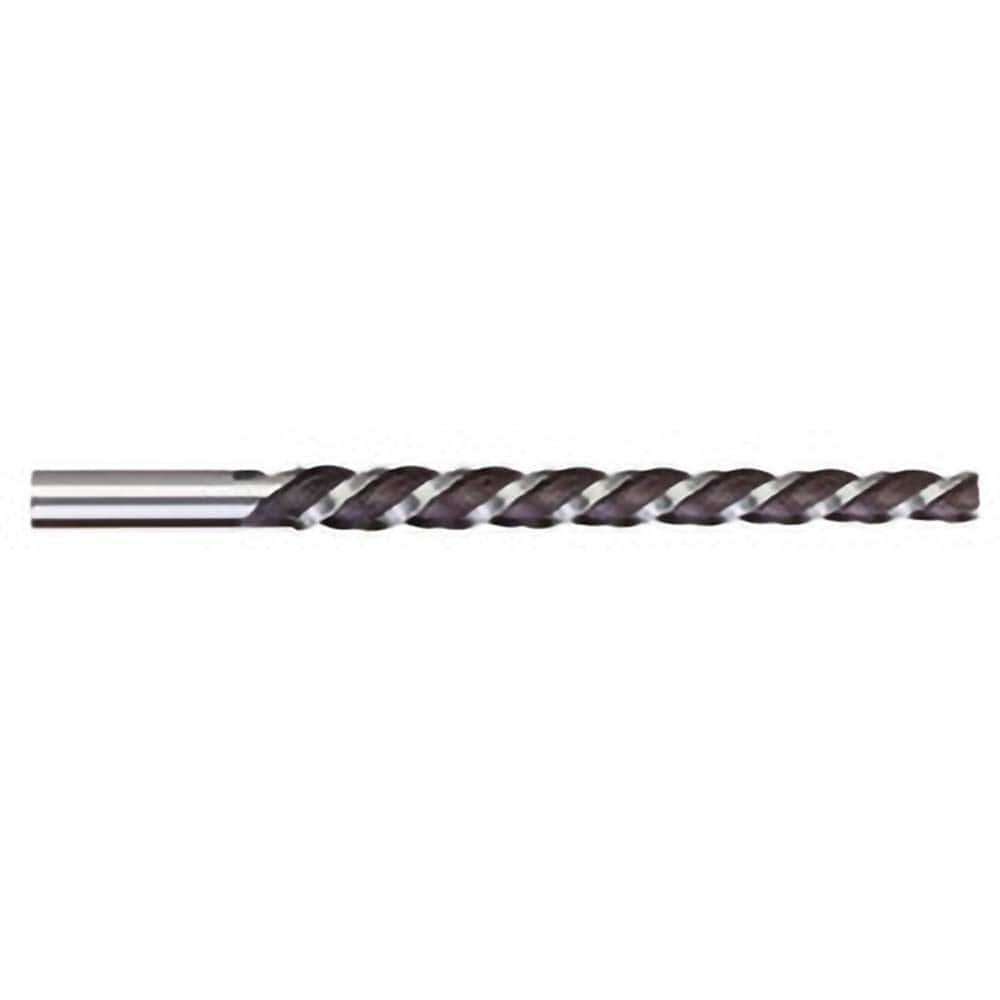

Titan USA - Taper Pin Reamers; Taper Pin Size (Number): #1 (Wire); Small End Diameter (Decimal Inch): 0.1447 ; Reamer Diameter (Decimal Inch): 0.1798 ; Flute Type: Helical ; Shank Type: Straight ; Overall Length (Inch): 2-15/16
Item #: 07962533
Brand: Titan USA
Model #: TR97553
Product Specifications
Taper Pin Reamers; Taper Pin Size (Number): #1 (Wire); Small End Diameter (Decimal Inch): 0.1447 ; Reamer Diameter (Decimal Inch): 0.1798 ; Flute Type: Helical ; Shank Type: Straight ; Overall Length (Inch): 2-15/16
| Taper Pin Size (Number) | #1 |
| Small End Diameter (Decimal Inch) | 0.1447 |
| Reamer Diameter (Decimal Inch) | 0.1798 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 2-15/16 |
| Flute Length (Inch) | 1-11/16 |
| Number of Flutes | 6 |
| Shank Diameter (Inch) | 3/16 |
| Spiral Direction | Left Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Uncoated |
