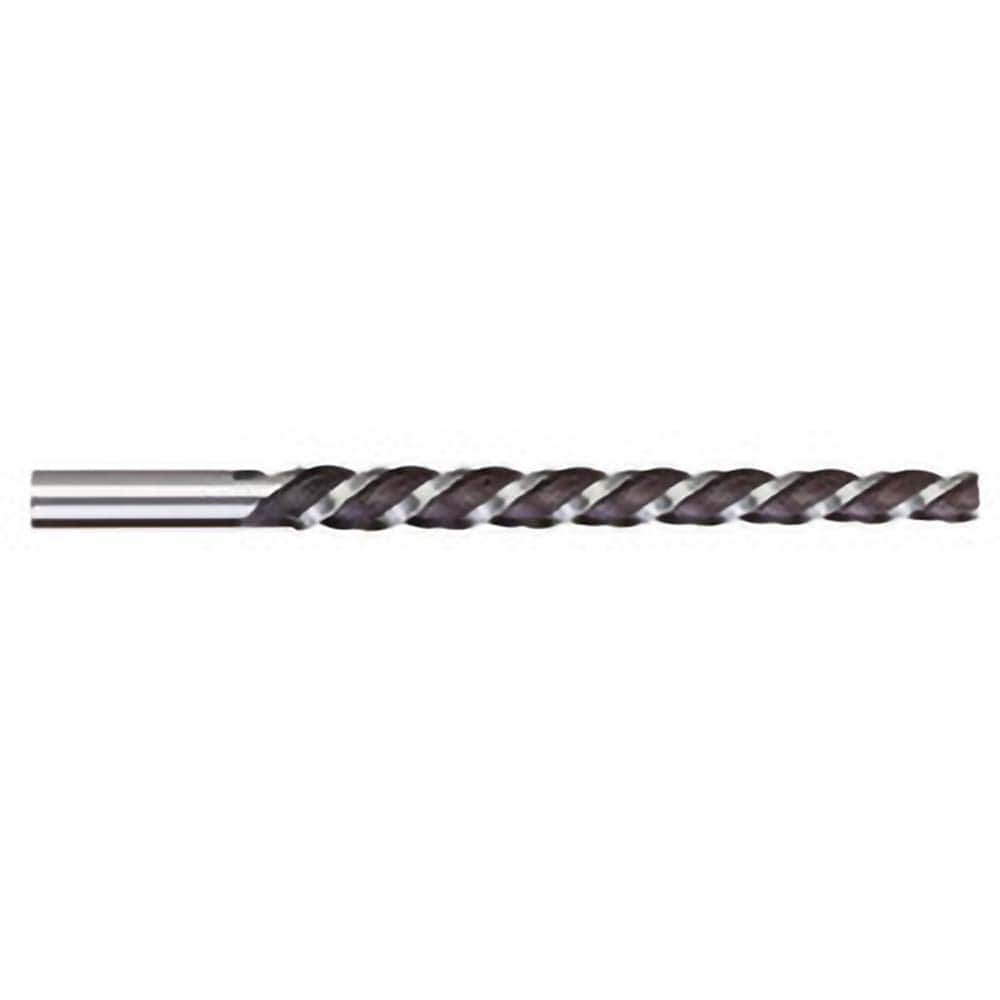

Titan USA - Taper Pin Reamers; Taper Pin Size (Number): #2/0 (Wire); Small End Diameter (Decimal Inch): 0.1137 ; Reamer Diameter (Decimal Inch): 0.1462 ; Flute Type: Helical ; Shank Type: Straight ; Overall Length (Inch): 2-9/16
Item #: 07962558
Brand: Titan USA
Model #: TR97551
Product Specifications
Taper Pin Reamers; Taper Pin Size (Number): #2/0 (Wire); Small End Diameter (Decimal Inch): 0.1137 ; Reamer Diameter (Decimal Inch): 0.1462 ; Flute Type: Helical ; Shank Type: Straight ; Overall Length (Inch): 2-9/16
| Taper Pin Size (Number) | #2/0 |
| Small End Diameter (Decimal Inch) | 0.1137 |
| Reamer Diameter (Decimal Inch) | 0.1462 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 2-9/16 |
| Flute Length (Inch) | 1-9/16 |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 5/32 |
| Spiral Direction | Left Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Uncoated |
