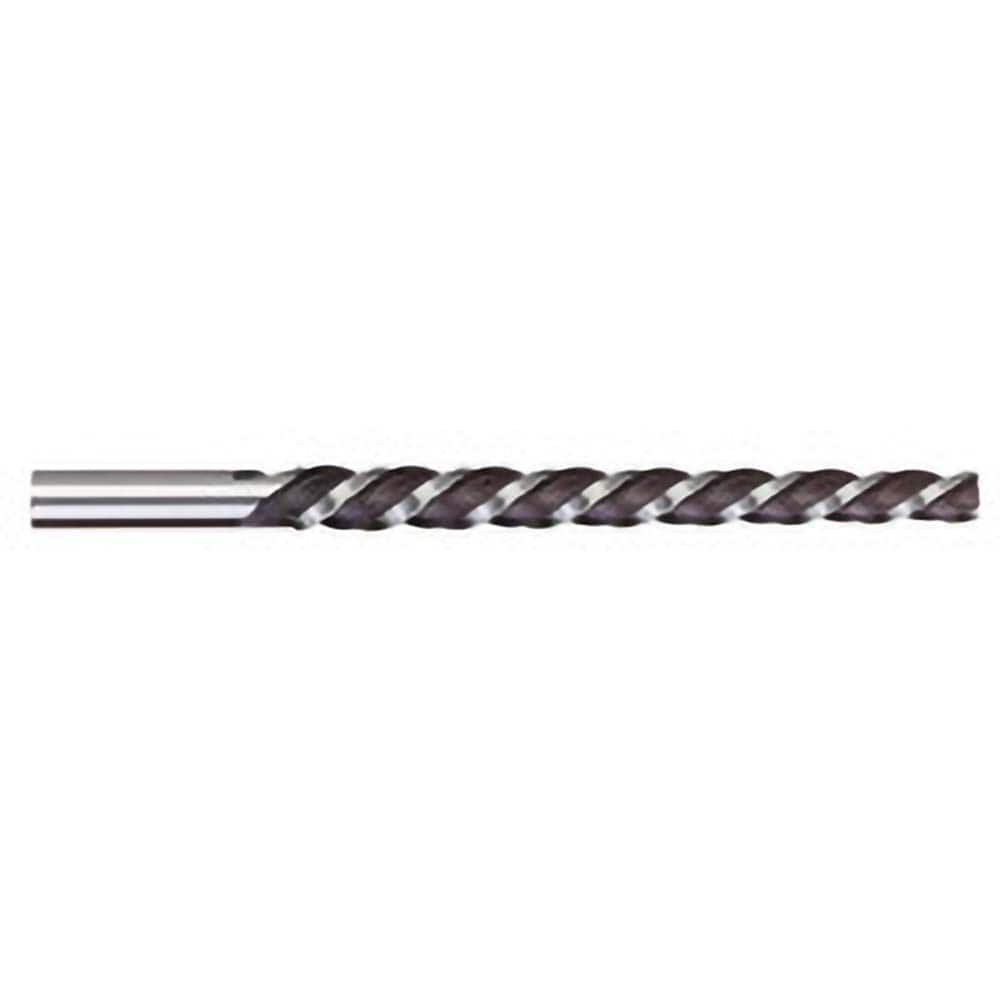

#5/0 Pin 0.0719″ Small End/0.0966″ Large End Helical Flute High Speed Steel Taper Pin Reamer Uncoated, 1-3/16″ Flute Length, 2-3/16″ OAL, 4 Flutes, 7/64″ Diam Straight-Cylindrical Shank, LH Spiral, RH Cut
Item #: 07962590
Brand: Titan USA
Model #: TR97548
Product Specifications
| Taper Pin Size | #5/0 |
| Flute Type | Helical |
| Shank Type | Straight-Cylindrical |
| Tool Material | High Speed Steel |
| Series | 988 |
| Coating/Finish | Bright/Uncoated |
| Small End Diameter (Decimal Inch) | 0.0719 |
| Large End Diameter (Decimal Inch) | 0.0966 |
| Spiral Direction | Left Hand |
| Overall Length (Inch) | 2-3/16 |
| Overall Length (Decimal Inch) | 2.1875 |
| Flute Length (Inch) | 1-3/16 |
| Flute Length (Decimal Inch) | 1.1875 |
| Number of Flutes | 4 |
| Shank Diameter (Inch) | 7/64 |
| Shank Diameter (Decimal Inch) | 0.1094 |
| Taper Rate | 1:48 |
| Tool Application | Hole Enlarging; Hole Finishing; Hole Shaping |
| Tool Performance | General Purpose |
| Cutting Direction | Right Hand |
