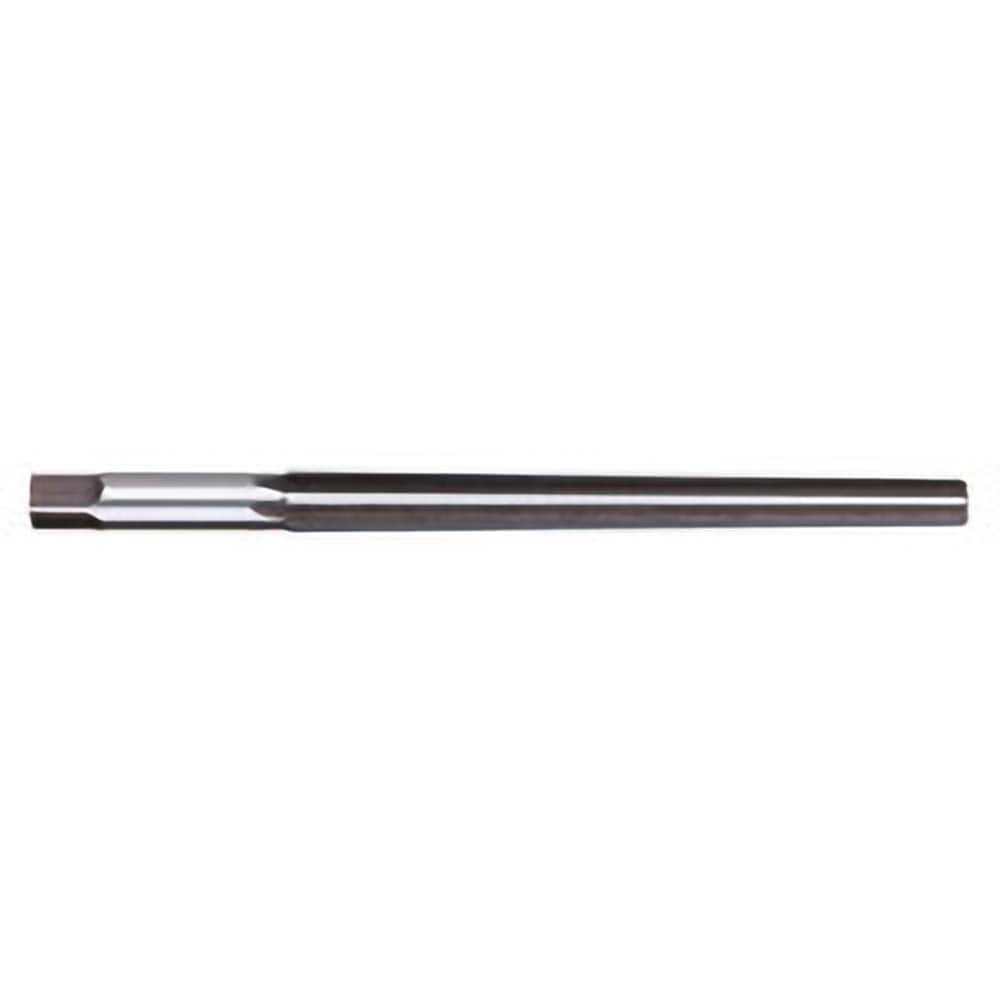

Titan USA - Taper Pin Reamers; Taper Pin Size (Number): #9 (Wire); Small End Diameter (Decimal Inch): 0.4805 ; Reamer Diameter (Decimal Inch): 0.6066 ; Flute Type: Straight ; Shank Type: Straight ; Overall Length (Inch): 8-5/16
Item #: 07962665
Brand: Titan USA
Model #: TR97540
Product Specifications
Taper Pin Reamers; Taper Pin Size (Number): #9 (Wire); Small End Diameter (Decimal Inch): 0.4805 ; Reamer Diameter (Decimal Inch): 0.6066 ; Flute Type: Straight ; Shank Type: Straight ; Overall Length (Inch): 8-5/16
| Taper Pin Size (Number) | #9 |
| Small End Diameter (Decimal Inch) | 0.4805 |
| Reamer Diameter (Decimal Inch) | 0.6066 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 8-5/16 |
| Flute Length (Inch) | 6-1/16 |
| Number of Flutes | 6 |
| Shank Diameter (Inch) | 9/16 |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Uncoated |
