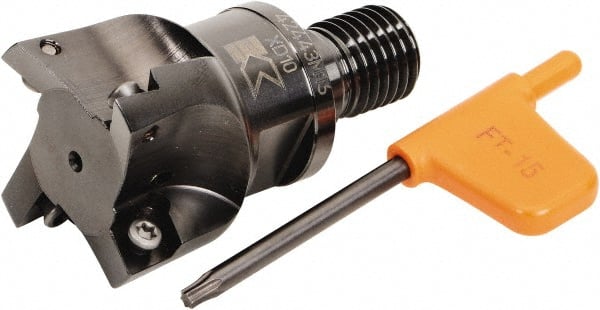

Kennametal - 1.6535" Cut Diam, 8mm Max Depth of Cut, 2.6575" OAL, Indexable Square Shoulder Helical End Mill - XD.. 10T3.. Inserts, M16 Modular Connection, Series KMM
Item #: 07994361
Brand: Kennametal
Model #: 1880652
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Overall Length/Projection (Decimal Inch) | 2.6575 |
| Series | KMM |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 42.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.6535 |
| Head Length (mm) | 43.00 |
| Head Length (Decimal Inch) | 1.6929 |
| Insert Compatibility | XD.. 10T3.. |
| Shank Length (Decimal Inch) | 0.9646 |
| Shank Length (mm) | 24.50 |
