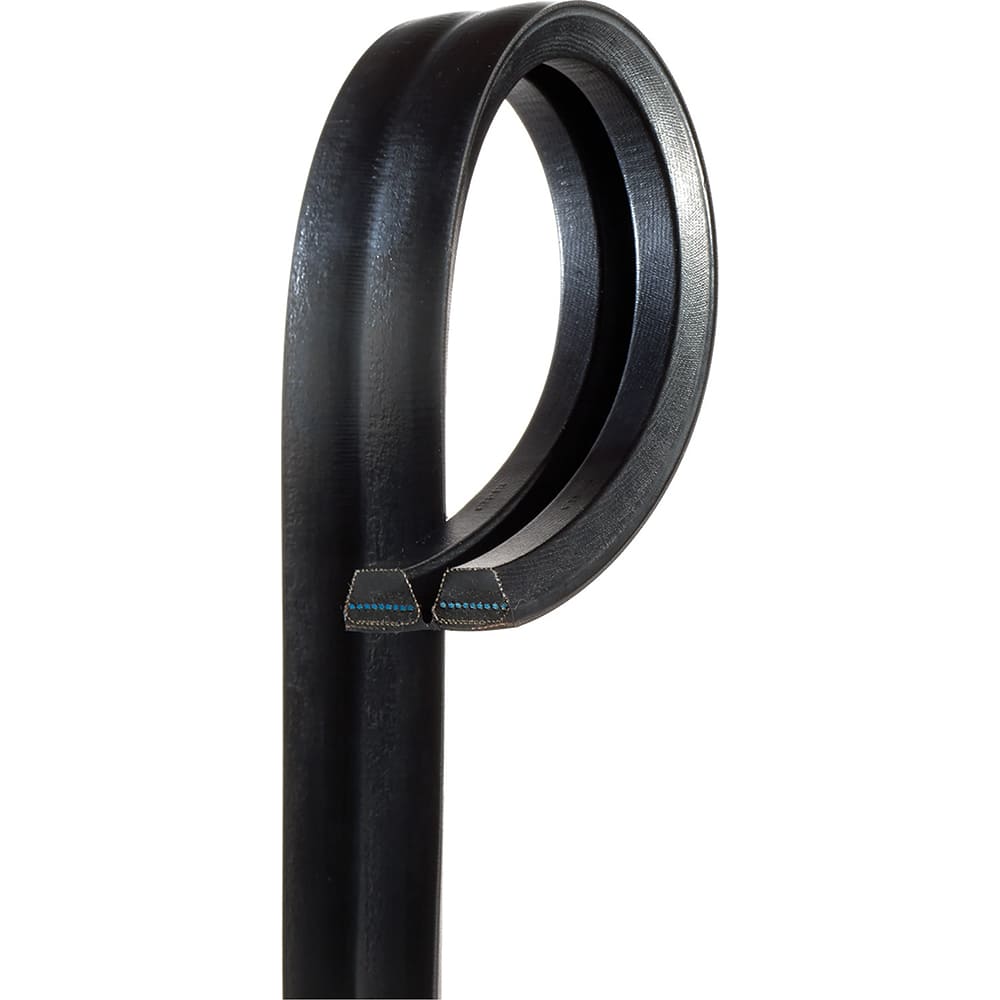

Gates - Belts Belt Style: V-Belts Belt Section: 5V
Item #: 96330519
Brand: Gates
Model #: 93883071
Product Specifications
Belts; Belt Style: V-Belts ; Belt Section: 5V ; Outside Length: 118.340 (Decimal Inch); Outside Length: 3005.84 (mm); Belt Width: 0.660 (Decimal Inch); Belt Width: 16.76 (mm)
| Belt Style | V-Belts |
| Belt Section | 5V |
| Outside Length (Decimal Inch) | 118.340 |
| Outside Length (mm) | 3005.84 |
| Belt Width (Decimal Inch) | 0.660 |
| Belt Width (mm) | 16.76 |
| Belt Number | 5V1180 |
| Belt Internal Length (Decimal Inch) | 114.99 |
| Belt Internal Length (mm) | 2920.75 |
| Number of Ribs | 0.000 |
| Number of Teeth | 0 |
| Belt Pitch | 0.2 |
| Material | Neoprene |
| Belt Height | 0.533 |
| Color | Black |
| Style | Banded V-Belt |
| Maximum Temperature (F) | 180 |
