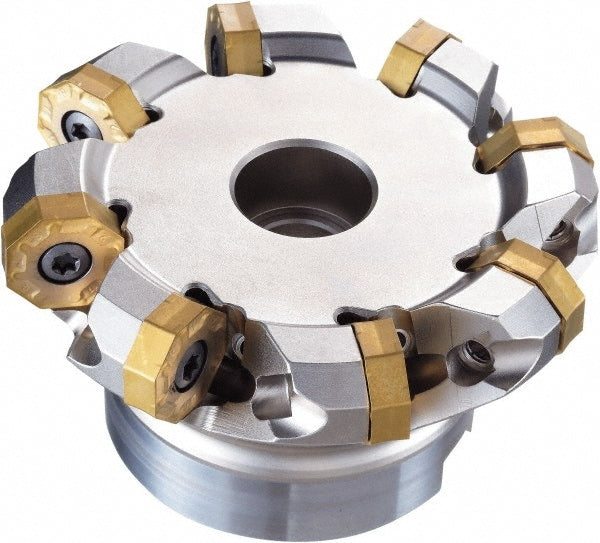

60.99mm Cut Diam, 3/4" Arbor Hole Diam, 1.575" Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704431
Brand: OSG
Model #: 52800000
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 2.4010 |
| Maximum Cutting Diameter (mm) | 60.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | OZKU06?; XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 52800 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.7720 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 2.4010 |
| Maximum Cutting Diameter (mm) | 60.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | OZKU06?; XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 52800 |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.7720 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| MSC Part # | 55704431 |
| Mfr Part # | 52800000 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
