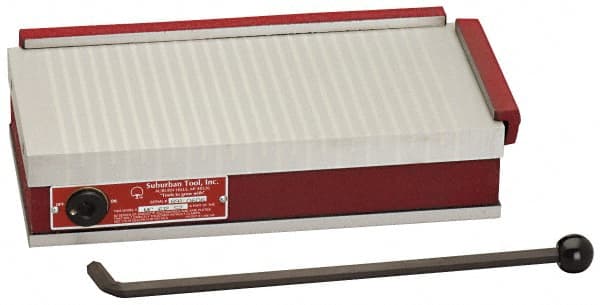

Suburban Tool - Standard Pole Rectangular Permanent Magnetic Block Chuck - 12" Long x 6" Wide x 2-5/8" High, Ceramic
Item #: 08020315
Brand: Suburban Tool
Model #: MC612S2
Exact Tooling IR#: 04
Features and Benefits
Rectangular magnetic chucks are designed with rectangular shaped magnets. They are standard chucks used for maximium holding and a variety of applications.
Standard poles are used for holding large and thick parts in medium- to heavy-duty applications. The magnetic poles are wider apart than that of fine poles.
| Product Specifications | |
|---|---|
| Shape | Rectangular |
| Magnet Pole Type | Standard Pole |
| Width/Diameter (Inch) | 6 |
| Length (Inch) | 12 |
| Sine Plate Compatibility | S2 |
| Application | Parallel |
| Height (Inch) | 2-5/8 |
| Magnet Material Type | Ceramic |
| Pole Alignment | Longitudinal |
| Parallelism (Decimal Inch) | 0.0003 |
| Squareness (Decimal Inch) | 0.0003 |
| Chuck Style | Block |
| Pole Width (Inch) | 1/4 |
| Includes | Back Rail; Removable Handle; Side Rail |
