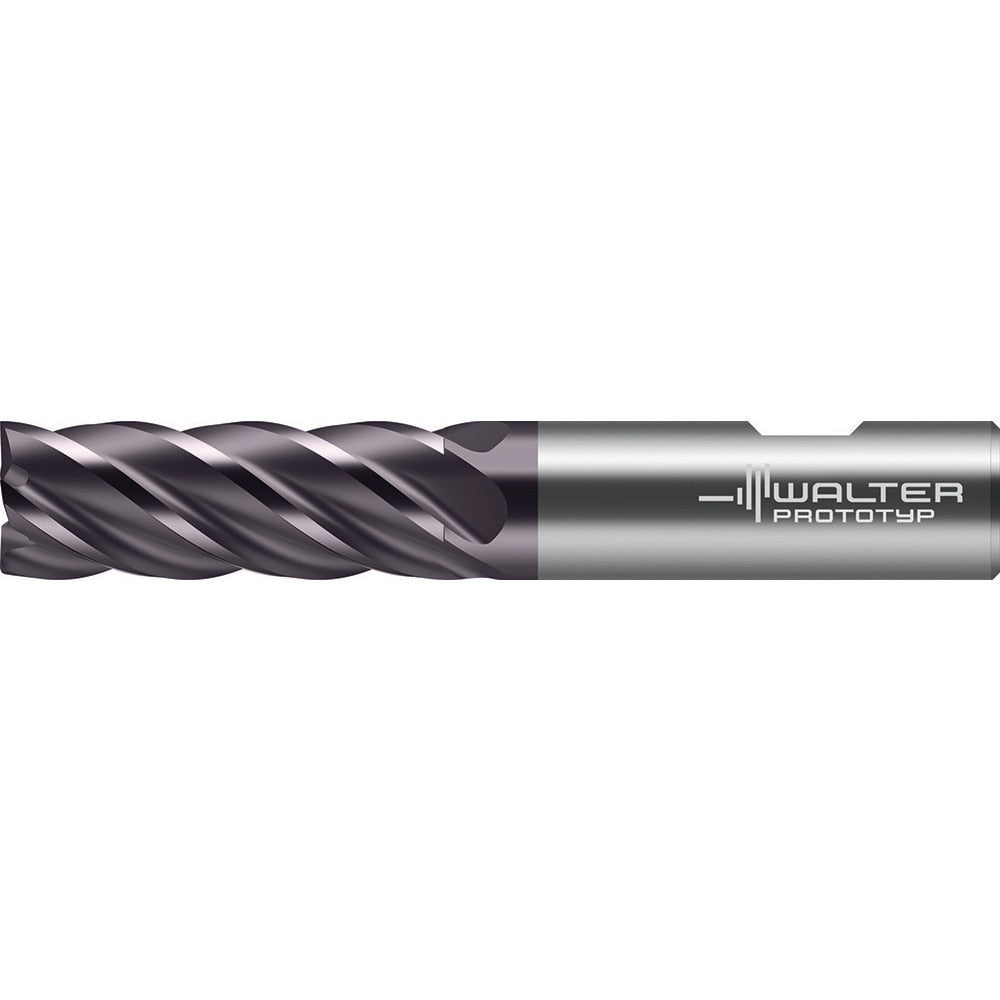

Square End Mill: 20.00 mm Dia, 55.0000 mm LOC, 5 Flute, Solid Carbide
Item #: 55392591
Brand: Walter-Prototyp
Model #: 8303196
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 55.0000 |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 125.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; K; M; N |
| Coating/Finish | TiAlN/THL |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Weldon Flat |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Reach Length (mm) | 55.00 |
| Shank Diameter Tolerance | h5 |
| Series | MC230 |
| UNSPSC Code | 27112803 |
